Circuits::IQuantumGate< Time > Class Template Reference

The interface for quantum gates. More...

#include <QuantumGates.h>

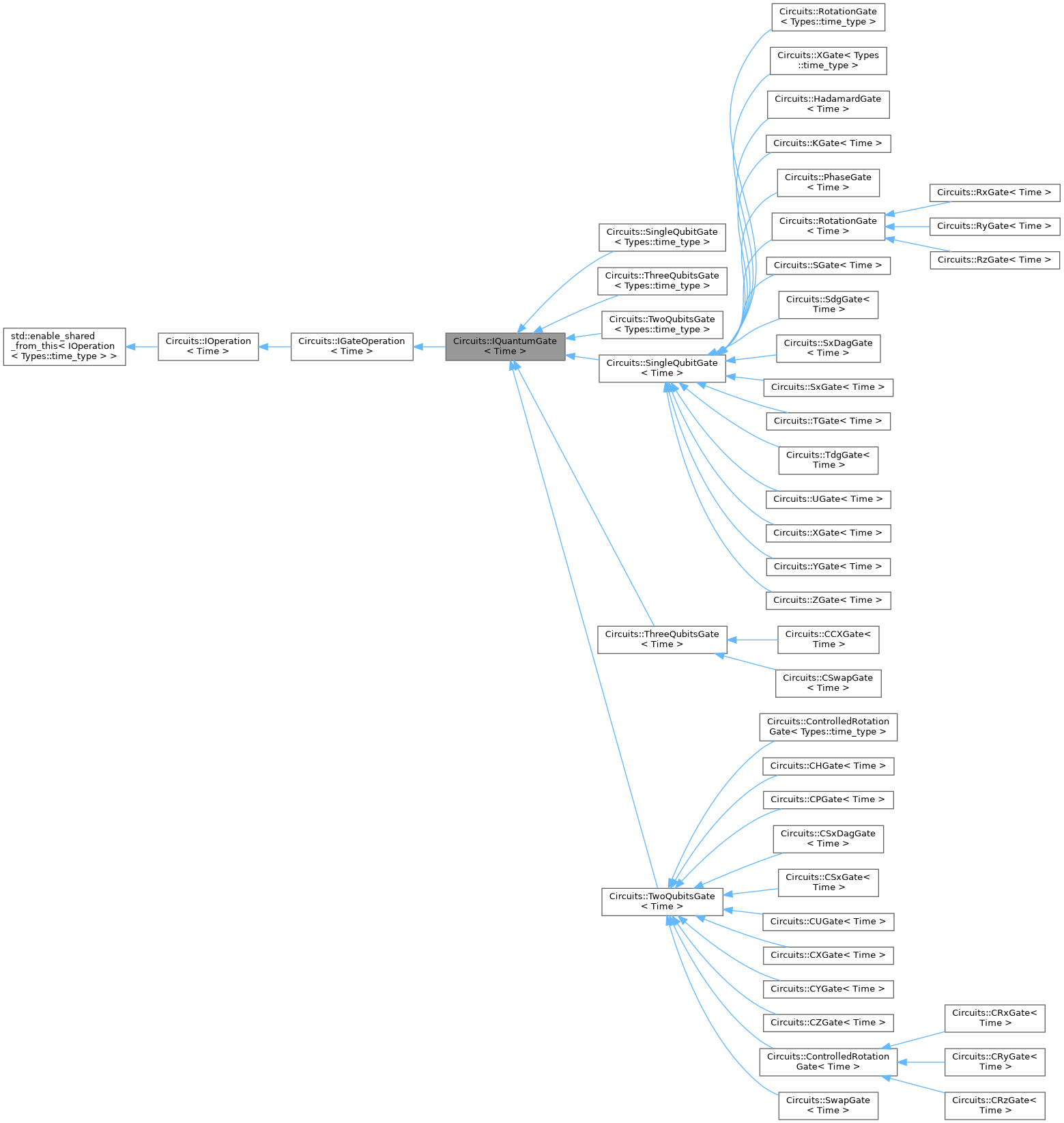

Inheritance diagram for Circuits::IQuantumGate< Time >:

Public Member Functions
	IQuantumGate (Time delay=0)
	IQuantumGate constructor.
virtual QuantumGateType	GetGateType () const =0
	Get the type of the quantum gate.
virtual std::vector< double >	GetParams () const
	Get the gate parameters.
Public Member Functions inherited from Circuits::IGateOperation< Types::time_type >
	IGateOperation (Types::time_type delay=0)
	Construct a new IGateOperation object.
OperationType	GetType () const override
	Get the type of the operation.
virtual unsigned int	GetNumQubits () const=0
	Get the number of qubits.
virtual void	SetQubit (Types::qubit_t qubit, unsigned long index=0)=0
	Set the qubits involved.
virtual Types::qubit_t	GetQubit (unsigned int index=0) const=0
	Get the qubit involved.
Public Member Functions inherited from Circuits::IOperation< Types::time_type >
	IOperation (Types::time_type delay=0)
	Construct a new IOperation object.
virtual	~IOperation ()=default
	Destroy the IOperation object.
virtual void	Execute (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const=0
	Execute the operation.
virtual std::shared_ptr< IOperation< Types::time_type > >	Clone () const=0
	Get a shared pointer to a clone of this object.
virtual std::shared_ptr< IOperation< Types::time_type > >	Remap (const std::unordered_map< Types::qubit_t, Types::qubit_t > &qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > &bitsMap={}) const=0
	Get a shared pointer to a remapped operation.
virtual bool	CanAffectQuantumState () const
	Find if the operation can affect the quantum state.
virtual bool	NeedsEntanglementForDistribution () const
	Find if the operation needs entanglement for distribution.
virtual bool	IsConditional () const
	Find if the operation is a conditional operation.
virtual Types::qubits_vector	AffectedQubits () const
	Returns the affected qubits.
virtual std::vector< size_t >	AffectedBits () const
	Returns the affected bits.
std::shared_ptr< IOperation< Types::time_type > >	getptr ()
	Get a shared pointer to this object.
Types::time_type	GetDelay () const
	Get the delay of the operation.
void	SetDelay (Types::time_type d)
	Set the delay of the operation.
virtual bool	IsClifford () const
	Checks if the operation is a Clifford one.

Detailed Description

template<typename Time = Types::time_type>
class Circuits::IQuantumGate< Time >

The interface for quantum gates.

The interface for quantum gates. Quantum gates are quantum operations that can be applied to a quantum state.

Template Parameters

Time	The type of the execution delay.

See also

IGateOperation

Definition at line 71 of file QuantumGates.h.

Constructor & Destructor Documentation

IQuantumGate()

template<typename Time = Types::time_type>

Circuits::IQuantumGate< Time >::IQuantumGate ( Time delay = 0 )

inline

IQuantumGate constructor.

Constructs the IQuantumGate object. If specified, the delay is the time the quantum gate takes to execute.

See also

IGateOperation

Definition at line 80 of file QuantumGates.h.

Member Function Documentation

GetGateType()

template<typename Time = Types::time_type>

virtual QuantumGateType Circuits::IQuantumGate< Time >::GetGateType ( ) const

pure virtual

Get the type of the quantum gate.

Returns the type of the quantum gate.

Returns

The type of the quantum gate.

See also

QuantumGateType

Implemented in Circuits::CCXGate< Time >, Circuits::CHGate< Time >, Circuits::CPGate< Time >, Circuits::CRxGate< Time >, Circuits::CRyGate< Time >, Circuits::CRzGate< Time >, Circuits::CSwapGate< Time >, Circuits::CSxDagGate< Time >, Circuits::CSxGate< Time >, Circuits::CUGate< Time >, Circuits::CXGate< Time >, Circuits::CYGate< Time >, Circuits::CZGate< Time >, Circuits::HadamardGate< Time >, Circuits::KGate< Time >, Circuits::PhaseGate< Time >, Circuits::RxGate< Time >, Circuits::RyGate< Time >, Circuits::RzGate< Time >, Circuits::SdgGate< Time >, Circuits::SGate< Time >, Circuits::SwapGate< Time >, Circuits::SxDagGate< Time >, Circuits::SxGate< Time >, Circuits::TdgGate< Time >, Circuits::TGate< Time >, Circuits::UGate< Time >, Circuits::XGate< Time >, Circuits::XGate< Types::time_type >, Circuits::YGate< Time >, and Circuits::ZGate< Time >.

GetParams()

template<typename Time = Types::time_type>

virtual std::vector< double > Circuits::IQuantumGate< Time >::GetParams ( ) const

inlinevirtual

Get the gate parameters.

Returns the parameters of the gate.

Returns

A vector with the parameters of the gate, empty if there are no parameters.

Reimplemented in Circuits::ControlledRotationGate< Time >, Circuits::ControlledRotationGate< Types::time_type >, Circuits::CPGate< Time >, Circuits::CUGate< Time >, Circuits::PhaseGate< Time >, Circuits::RotationGate< Time >, Circuits::RotationGate< Types::time_type >, and Circuits::UGate< Time >.

Definition at line 98 of file QuantumGates.h.

---

The documentation for this class was generated from the following file:

• QuantumGates.h
