Interface class for a quantum computing simulator. More...

#include <Simulator.h>

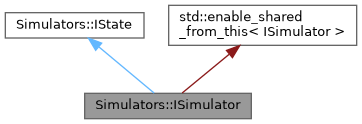

Inheritance diagram for Simulators::ISimulator:

Public Member Functions
virtual void	ApplyP (Types::qubit_t qubit, double lambda)=0
	Applies a phase shift gate to the qubit.
virtual void	ApplyX (Types::qubit_t qubit)=0
	Applies a not gate to the qubit.
virtual void	ApplyY (Types::qubit_t qubit)=0
	Applies a Y gate to the qubit.
virtual void	ApplyZ (Types::qubit_t qubit)=0
	Applies a Z gate to the qubit.
virtual void	ApplyH (Types::qubit_t qubit)=0
	Applies a Hadamard gate to the qubit.
virtual void	ApplyS (Types::qubit_t qubit)=0
	Applies a S gate to the qubit.
virtual void	ApplySDG (Types::qubit_t qubit)=0
	Applies a S dagger gate to the qubit.
virtual void	ApplyT (Types::qubit_t qubit)=0
	Applies a T gate to the qubit.
virtual void	ApplyTDG (Types::qubit_t qubit)=0
	Applies a T dagger gate to the qubit.
virtual void	ApplySx (Types::qubit_t qubit)=0
	Applies a Sx gate to the qubit.
virtual void	ApplySxDAG (Types::qubit_t qubit)=0
	Applies a Sx dagger gate to the qubit.
virtual void	ApplyK (Types::qubit_t qubit)=0
	Applies a K gate to the qubit.
virtual void	ApplyRx (Types::qubit_t qubit, double theta)=0
	Applies a Rx gate to the qubit.
virtual void	ApplyRy (Types::qubit_t qubit, double theta)=0
	Applies a Ry gate to the qubit.
virtual void	ApplyRz (Types::qubit_t qubit, double theta)=0
	Applies a Rz gate to the qubit.
virtual void	ApplyU (Types::qubit_t qubit, double theta, double phi, double lambda, double gamma)=0
	Applies a U gate to the qubit.
virtual void	ApplyCX (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit)=0
	Applies a CX gate to the qubits.
virtual void	ApplyCY (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit)=0
	Applies a CY gate to the qubits.
virtual void	ApplyCZ (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit)=0
	Applies a CZ gate to the qubits.
virtual void	ApplyCP (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit, double lambda)=0
	Applies a CP gate to the qubits.
virtual void	ApplyCRx (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit, double theta)=0
	Applies a CRx gate to the qubits.
virtual void	ApplyCRy (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit, double theta)=0
	Applies a CRy gate to the qubits.
virtual void	ApplyCRz (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit, double theta)=0
	Applies a CRz gate to the qubits.
virtual void	ApplyCH (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit)=0
	Applies a CH gate to the qubits.
virtual void	ApplyCSx (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit)=0
	Applies a CSx gate to the qubits.
virtual void	ApplyCSxDAG (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit)=0
	Applies a CSx dagger gate to the qubits.
virtual void	ApplySwap (Types::qubit_t qubit0, Types::qubit_t qubit1)=0
	Applies a swap gate to the qubits.
virtual void	ApplyCCX (Types::qubit_t qubit0, Types::qubit_t qubit1, Types::qubit_t qubit2)=0
	Applies a controlled controlled not gate to the qubits.
virtual void	ApplyCSwap (Types::qubit_t ctrl_qubit, Types::qubit_t qubit0, Types::qubit_t qubit1)=0
	Applies a controlled swap gate to the qubits.
virtual void	ApplyCU (Types::qubit_t ctrl_qubit, Types::qubit_t tgt_qubit, double theta, double phi, double lambda, double gamma)=0
	Applies a controlled U gate to the qubits.
virtual void	ApplyNop ()=0
	Applies a nop.
virtual std::unique_ptr< ISimulator >	Clone ()=0
	Clones the simulator.
std::shared_ptr< ISimulator >	getptr ()
	Get a shared pointer to this object.
Public Member Functions inherited from Simulators::IState
virtual	~IState ()=default
	Virtual destructor.
virtual void	Initialize ()=0
	Initializes the state.
virtual void	InitializeState (size_t num_qubits, std::vector< std::complex< double > > &amplitudes)=0
	Initializes the state.
virtual void	InitializeState (size_t num_qubits, AER::Vector< std::complex< double > > &amplitudes)=0
	Initializes the state.
virtual void	InitializeState (size_t num_qubits, Eigen::VectorXcd &amplitudes)=0
	Initializes the state.
virtual void	Reset ()=0
	Just resets the state to 0.
virtual void	Configure (const char key, const char value)=0
	Configures the state.
virtual std::string	GetConfiguration (const char *key) const =0
	Returns configuration value.
virtual size_t	AllocateQubits (size_t num_qubits)=0
	Allocates qubits.
virtual size_t	GetNumberOfQubits () const =0
	Returns the number of qubits.
virtual void	Clear ()=0
	Clears the state.
virtual size_t	Measure (const Types::qubits_vector &qubits)=0
	Performs a measurement on the specified qubits.
virtual void	ApplyReset (const Types::qubits_vector &qubits)=0
	Performs a reset of the specified qubits.
virtual double	Probability (Types::qubit_t outcome)=0
	Returns the probability of the specified outcome.
virtual std::complex< double >	Amplitude (Types::qubit_t outcome)=0
	Returns the amplitude of the specified state.
virtual std::vector< double >	AllProbabilities ()=0
	Returns the probabilities of all possible outcomes.
virtual std::vector< double >	Probabilities (const Types::qubits_vector &qubits)=0
	Returns the probabilities of the specified outcomes.
virtual std::unordered_map< Types::qubit_t, Types::qubit_t >	SampleCounts (const Types::qubits_vector &qubits, size_t shots=1000)=0
	Returns the counts of the outcomes of measurement of the specified qubits, for repeated measurements.
virtual double	ExpectationValue (const std::string &pauliString)=0
	Returns the expected value of a Pauli string.
void	RegisterObserver (const std::shared_ptr< ISimulatorObserver > &observer)
	Registers an observer.
void	UnregisterObserver (const std::shared_ptr< ISimulatorObserver > &observer)
	Unregisters an observer.
void	ClearObservers ()
	Clears all observers.
virtual SimulatorType	GetType () const =0
	Returns the type of simulator.
virtual SimulationType	GetSimulationType () const =0
	Returns the type of simulation.
virtual void	Flush ()=0
	Flushes the applied operations.
virtual void	SaveStateToInternalDestructive ()=0
	Saves the state to internal storage.
virtual void	RestoreInternalDestructiveSavedState ()=0
	Restores the state from the internally saved state.
virtual void	SaveState ()=0
	Saves the state to internal storage.
virtual void	RestoreState ()=0
	Restores the state from the internally saved state.
virtual std::complex< double >	AmplitudeRaw (Types::qubit_t outcome)=0
	Gets the amplitude.
virtual void	SetMultithreading (bool multithreading=true)=0
	Enable/disable multithreading.
virtual bool	GetMultithreading () const =0
	Get the multithreading flag.
virtual bool	IsQcsim () const =0
	Returns if the simulator is a qcsim simulator.
virtual Types::qubit_t	MeasureNoCollapse ()=0
	Measures all the qubits without collapsing the state.

Additional Inherited Members
Protected Member Functions inherited from Simulators::IState
void	DontNotify ()
	Stops notifying observers.
void	Notify ()
	Starts notifying observers.
void	NotifyObservers (const Types::qubits_vector &affectedQubits)
	Notifies observers.

Detailed Description

Interface class for a quantum computing simulator.

This is the interface that exposes the functionality of the quantum computing simulators. Use them wrapped in shared pointers.

See also: IState; AerSimulator; QCSimSimulator

Definition at line 32 of file Simulator.h.

Member Function Documentation

◆ ApplyCCX()

virtual void Simulators::ISimulator::ApplyCCX	(	Types::qubit_t	qubit0,
		Types::qubit_t	qubit1,
		Types::qubit_t	qubit2 )

pure virtual

Applies a controlled controlled not gate to the qubits.

Applies a controlled controlled not gate to the specified qubits

Parameters

qubit0	The first control qubit
qubit1	The second control qubit
qubit2	The target qubit

◆ ApplyCH()

virtual void Simulators::ISimulator::ApplyCH	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit )

pure virtual

Applies a CH gate to the qubits.

Applies a controlled Hadamard gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit

◆ ApplyCP()

virtual void Simulators::ISimulator::ApplyCP	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit,
		double	lambda )

pure virtual

Applies a CP gate to the qubits.

Applies a controlled phase gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit
lambda	The phase shift angle.

◆ ApplyCRx()

virtual void Simulators::ISimulator::ApplyCRx	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit,
		double	theta )

pure virtual

Applies a CRx gate to the qubits.

Applies a controlled x rotation gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit
theta	The rotation angle.

◆ ApplyCRy()

virtual void Simulators::ISimulator::ApplyCRy	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit,
		double	theta )

pure virtual

Applies a CRy gate to the qubits.

Applies a controlled y rotation gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit
theta	The rotation angle.

◆ ApplyCRz()

virtual void Simulators::ISimulator::ApplyCRz	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit,
		double	theta )

pure virtual

Applies a CRz gate to the qubits.

Applies a controlled z rotation gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit
theta	The rotation angle.

◆ ApplyCSwap()

virtual void Simulators::ISimulator::ApplyCSwap	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	qubit0,
		Types::qubit_t	qubit1 )

pure virtual

Applies a controlled swap gate to the qubits.

Applies a controlled swap gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
qubit0	The first qubit
qubit1	The second qubit

◆ ApplyCSx()

virtual void Simulators::ISimulator::ApplyCSx	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit )

pure virtual

Applies a CSx gate to the qubits.

Applies a controlled squared root not gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit

◆ ApplyCSxDAG()

virtual void Simulators::ISimulator::ApplyCSxDAG	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit )

pure virtual

Applies a CSx dagger gate to the qubits.

Applies a controlled squared root not dagger gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit

◆ ApplyCU()

virtual void Simulators::ISimulator::ApplyCU	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit,
		double	theta,
		double	phi,
		double	lambda,
		double	gamma )

pure virtual

Applies a controlled U gate to the qubits.

Applies a controlled U gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit
theta	Theta parameter for the U gate
phi	Phi parameter for the U gate
lambda	Lambda parameter for the U gate
gamma	Gamma parameter for the U gate

◆ ApplyCX()

virtual void Simulators::ISimulator::ApplyCX	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit )

pure virtual

Applies a CX gate to the qubits.

Applies a controlled X gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit

◆ ApplyCY()

virtual void Simulators::ISimulator::ApplyCY	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit )

pure virtual

Applies a CY gate to the qubits.

Applies a controlled Y gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit

◆ ApplyCZ()

virtual void Simulators::ISimulator::ApplyCZ	(	Types::qubit_t	ctrl_qubit,
		Types::qubit_t	tgt_qubit )

pure virtual

Applies a CZ gate to the qubits.

Applies a controlled Z gate to the specified qubits

Parameters

ctrl_qubit	The control qubit
tgt_qubit	The target qubit

◆ ApplyH()

virtual void Simulators::ISimulator::ApplyH ( Types::qubit_t qubit )

pure virtual

Applies a Hadamard gate to the qubit.

Applies a Hadamard gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplyK()

virtual void Simulators::ISimulator::ApplyK ( Types::qubit_t qubit )

pure virtual

Applies a K gate to the qubit.

Applies a K (Hy) gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplyNop()

virtual void Simulators::ISimulator::ApplyNop ( )

pure virtual

Applies a nop.

Applies a nop (no operation). Typically does (almost) nothing. Equivalent to an identity. For qiskit aer it will send the 'nop' to the qiskit aer simulator.

◆ ApplyP()

virtual void Simulators::ISimulator::ApplyP	(	Types::qubit_t	qubit,
		double	lambda )

pure virtual

Applies a phase shift gate to the qubit.

Applies a specified phase shift gate to the qubit

Parameters

qubit	The qubit to apply the gate to.
lambda	The phase shift angle.

◆ ApplyRx()

virtual void Simulators::ISimulator::ApplyRx	(	Types::qubit_t	qubit,
		double	theta )

pure virtual

Applies a Rx gate to the qubit.

Applies an x rotation gate to the specified qubit

Parameters

qubit	The qubit to apply the gate to.
theta	The rotation angle.

◆ ApplyRy()

virtual void Simulators::ISimulator::ApplyRy	(	Types::qubit_t	qubit,
		double	theta )

pure virtual

Applies a Ry gate to the qubit.

Applies a y rotation gate to the specified qubit

Parameters

qubit	The qubit to apply the gate to.
theta	The rotation angle.

◆ ApplyRz()

virtual void Simulators::ISimulator::ApplyRz	(	Types::qubit_t	qubit,
		double	theta )

pure virtual

Applies a Rz gate to the qubit.

Applies a z rotation gate to the specified qubit

Parameters

qubit	The qubit to apply the gate to.
theta	The rotation angle.

◆ ApplyS()

virtual void Simulators::ISimulator::ApplyS ( Types::qubit_t qubit )

pure virtual

Applies a S gate to the qubit.

Applies a S gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplySDG()

virtual void Simulators::ISimulator::ApplySDG ( Types::qubit_t qubit )

pure virtual

Applies a S dagger gate to the qubit.

Applies a S dagger gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplySwap()

virtual void Simulators::ISimulator::ApplySwap	(	Types::qubit_t	qubit0,
		Types::qubit_t	qubit1 )

pure virtual

Applies a swap gate to the qubits.

Applies a swap gate to the specified qubits

Parameters

qubit0	The first qubit
qubit1	The second qubit

◆ ApplySx()

virtual void Simulators::ISimulator::ApplySx ( Types::qubit_t qubit )

pure virtual

Applies a Sx gate to the qubit.

Applies a Sx gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplySxDAG()

virtual void Simulators::ISimulator::ApplySxDAG ( Types::qubit_t qubit )

pure virtual

Applies a Sx dagger gate to the qubit.

Applies a Sx dagger gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplyT()

virtual void Simulators::ISimulator::ApplyT ( Types::qubit_t qubit )

pure virtual

Applies a T gate to the qubit.

Applies a T gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplyTDG()

virtual void Simulators::ISimulator::ApplyTDG ( Types::qubit_t qubit )

pure virtual

Applies a T dagger gate to the qubit.

Applies a T dagger gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplyU()

virtual void Simulators::ISimulator::ApplyU	(	Types::qubit_t	qubit,
		double	theta,
		double	phi,
		double	lambda,
		double	gamma )

pure virtual

Applies a U gate to the qubit.

Applies a U gate to the specified qubit

Parameters

qubit	The qubit to apply the gate to.
theta	The first parameter.
phi	The second parameter.
lambda	The third parameter.
gamma	The fourth parameter.

◆ ApplyX()

virtual void Simulators::ISimulator::ApplyX ( Types::qubit_t qubit )

pure virtual

Applies a not gate to the qubit.

Applies a not (X) gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplyY()

virtual void Simulators::ISimulator::ApplyY ( Types::qubit_t qubit )

pure virtual

Applies a Y gate to the qubit.

Applies a not (Y) gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ ApplyZ()

virtual void Simulators::ISimulator::ApplyZ ( Types::qubit_t qubit )

pure virtual

Applies a Z gate to the qubit.

Applies a not (Z) gate to the specified qubit

Parameters

qubit The qubit to apply the gate to.

◆ Clone()

virtual std::unique_ptr< ISimulator > Simulators::ISimulator::Clone ( )

pure virtual

Clones the simulator.

Clones the simulator, including the state, the configuration and the internally saved state, if any. Does not copy the observers. Should be used mainly internally, to optimise multiple shots execution, copying the state from the simulator used for timing.

Returns: A unique pointer to the cloned simulator.

◆ getptr()

std::shared_ptr< ISimulator > Simulators::ISimulator::getptr ( )

inline

Get a shared pointer to this object.

Returns a shared pointer to this object. The object needs to be already wrapped in a shared pointer.

Returns: A shared pointer to this object.

Definition at line 345 of file Simulator.h.

The documentation for this class was generated from the following file:

Simulator.h

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ ApplyCCX()

◆ ApplyCH()

◆ ApplyCP()

◆ ApplyCRx()

◆ ApplyCRy()

◆ ApplyCRz()

◆ ApplyCSwap()

◆ ApplyCSx()

◆ ApplyCSxDAG()

◆ ApplyCU()

◆ ApplyCX()

◆ ApplyCY()

◆ ApplyCZ()

◆ ApplyH()

◆ ApplyK()

◆ ApplyNop()

◆ ApplyP()

◆ ApplyRx()

◆ ApplyRy()

◆ ApplyRz()

◆ ApplyS()

◆ ApplySDG()

◆ ApplySwap()

◆ ApplySx()

◆ ApplySxDAG()

◆ ApplyT()

◆ ApplyTDG()

◆ ApplyU()

◆ ApplyX()

◆ ApplyY()

◆ ApplyZ()

◆ Clone()

◆ getptr()
