Circuits::ControlledRotationGate< Time > Class Template Reference

#include <QuantumGates.h>

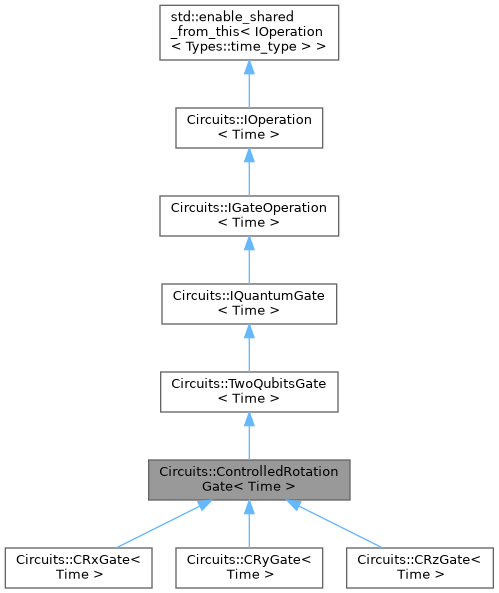

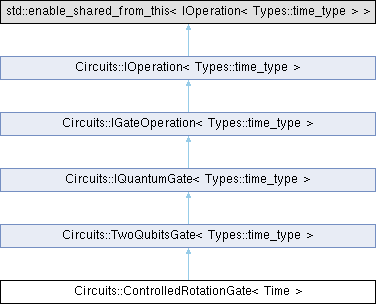

Inheritance diagram for Circuits::ControlledRotationGate< Time >:

Public Member Functions
	ControlledRotationGate (Types::qubit_t ctrl=0, Types::qubit_t target=1, double theta=0, Time delay=0)
	ControlledRotationGate constructor.
void	SetTheta (double t)
	Set the theta angle for the controlled rotation gate.
double	GetTheta () const
	Get the theta angle for the controlled rotation gate.
std::vector< double >	GetParams () const override
	Get the gate parameters.
Public Member Functions inherited from Circuits::TwoQubitsGate< Types::time_type >
	TwoQubitsGate (Types::qubit_t qubit1=0, Types::qubit_t qubit2=0, Types::time_type delay=0)
	TwoQubitsGate constructor.
virtual	~TwoQubitsGate ()
	The TwoQubitsGate destructor.
unsigned int	GetNumQubits () const override
	Get the number of qubits the quantum gate is applied to.
void	SetQubit (Types::qubit_t q, unsigned long index=0) override
	Set the qubit the quantum gate is applied to.
Types::qubit_t	GetQubit (unsigned int index=0) const override
	Get the qubit the quantum gate is applied to.
Types::qubits_vector	AffectedQubits () const override
	Get the qubits the quantum gate is applied to.
std::shared_ptr< IOperation< Types::time_type > >	Remap (const std::unordered_map< Types::qubit_t, Types::qubit_t > &qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > &bitsMap={}) const override
	Get a shared pointer to a remapped operation.
Public Member Functions inherited from Circuits::IQuantumGate< Types::time_type >
	IQuantumGate (Types::time_type delay=0)
	IQuantumGate constructor.
virtual QuantumGateType	GetGateType () const=0
	Get the type of the quantum gate.
Public Member Functions inherited from Circuits::IGateOperation< Types::time_type >
	IGateOperation (Types::time_type delay=0)
	Construct a new IGateOperation object.
OperationType	GetType () const override
	Get the type of the operation.
Public Member Functions inherited from Circuits::IOperation< Types::time_type >
	IOperation (Types::time_type delay=0)
	Construct a new IOperation object.
virtual	~IOperation ()=default
	Destroy the IOperation object.
virtual void	Execute (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const=0
	Execute the operation.
virtual std::shared_ptr< IOperation< Types::time_type > >	Clone () const=0
	Get a shared pointer to a clone of this object.
virtual bool	CanAffectQuantumState () const
	Find if the operation can affect the quantum state.
virtual bool	NeedsEntanglementForDistribution () const
	Find if the operation needs entanglement for distribution.
virtual bool	IsConditional () const
	Find if the operation is a conditional operation.
virtual std::vector< size_t >	AffectedBits () const
	Returns the affected bits.
std::shared_ptr< IOperation< Types::time_type > >	getptr ()
	Get a shared pointer to this object.
Types::time_type	GetDelay () const
	Get the delay of the operation.
void	SetDelay (Types::time_type d)
	Set the delay of the operation.
virtual bool	IsClifford () const
	Checks if the operation is a Clifford one.

Detailed Description

template<typename Time = Types::time_type>
class Circuits::ControlledRotationGate< Time >

Definition at line 2159 of file QuantumGates.h.

Constructor & Destructor Documentation

ControlledRotationGate()

template<typename Time = Types::time_type>

Circuits::ControlledRotationGate< Time >::ControlledRotationGate ( Types::qubit_t ctrl = 0, Types::qubit_t target = 1, double theta = 0, Time delay = 0 )

inline

ControlledRotationGate constructor.

Constructs the controlled rotation gate object. If specified, the delay is the time the quantum gate takes to execute. This class is not to be used directly, there are derived classes for specific rotations.

Parameters

ctrl	The control qubit the quantum gate is applied to.
target	The target qubit the quantum gate is applied to.
theta	The theta angle for the controlled rotation gate.
delay	The time the quantum gate takes to execute.

See also

TwoQubitsGate

Definition at line 2173 of file QuantumGates.h.

Member Function Documentation

GetParams()

template<typename Time = Types::time_type>

std::vector< double > Circuits::ControlledRotationGate< Time >::GetParams ( ) const

inlineoverridevirtual

Get the gate parameters.

Returns the parameters of the gate.

Returns

A vector with the parameters of the gate.

Reimplemented from Circuits::IQuantumGate< Types::time_type >.

Definition at line 2199 of file QuantumGates.h.

GetTheta()

template<typename Time = Types::time_type>

double Circuits::ControlledRotationGate< Time >::GetTheta ( ) const

inline

Get the theta angle for the controlled rotation gate.

Returns the theta angle for the controlled rotation gate.

Returns

The theta angle for the controlled rotation gate.

Definition at line 2191 of file QuantumGates.h.

SetTheta()

template<typename Time = Types::time_type>

void Circuits::ControlledRotationGate< Time >::SetTheta ( double t )

inline

Set the theta angle for the controlled rotation gate.

Sets the theta angle for the controlled rotation gate.

Parameters

t	The theta angle for the controlled rotation gate.

Definition at line 2183 of file QuantumGates.h.

---

The documentation for this class was generated from the following file:

• QuantumGates.h
