Circuits::IGateOperation< Time > Class Template Reference

The gate operation interface. More...

#include <Operations.h>

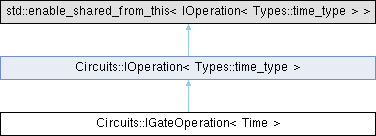

Inheritance diagram for Circuits::IGateOperation< Time >:

Public Member Functions
	IGateOperation (Time delay=0)
	Construct a new IGateOperation object.
OperationType	GetType () const override
	Get the type of the operation.
virtual unsigned int	GetNumQubits () const =0
	Get the number of qubits.
virtual void	SetQubit (Types::qubit_t qubit, unsigned long index=0)=0
	Set the qubits involved.
virtual Types::qubit_t	GetQubit (unsigned int index=0) const =0
	Get the qubit involved.
Public Member Functions inherited from Circuits::IOperation< Types::time_type >
	IOperation (Types::time_type delay=0)
	Construct a new IOperation object.
virtual	~IOperation ()=default
	Destroy the IOperation object.
virtual void	Execute (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const=0
	Execute the operation.
virtual std::shared_ptr< IOperation< Types::time_type > >	Clone () const=0
	Get a shared pointer to a clone of this object.
virtual std::shared_ptr< IOperation< Types::time_type > >	Remap (const std::unordered_map< Types::qubit_t, Types::qubit_t > &qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > &bitsMap={}) const=0
	Get a shared pointer to a remapped operation.
virtual bool	CanAffectQuantumState () const
	Find if the operation can affect the quantum state.
virtual bool	NeedsEntanglementForDistribution () const
	Find if the operation needs entanglement for distribution.
virtual bool	IsConditional () const
	Find if the operation is a conditional operation.
virtual Types::qubits_vector	AffectedQubits () const
	Returns the affected qubits.
virtual std::vector< size_t >	AffectedBits () const
	Returns the affected bits.
std::shared_ptr< IOperation< Types::time_type > >	getptr ()
	Get a shared pointer to this object.
Types::time_type	GetDelay () const
	Get the delay of the operation.
void	SetDelay (Types::time_type d)
	Set the delay of the operation.
virtual bool	IsClifford () const
	Checks if the operation is a Clifford one.

Detailed Description

template<typename Time = Types::time_type>
class Circuits::IGateOperation< Time >

The gate operation interface.

The gate operation interface, this is the base class for all gate operations.

Template Parameters

Time	The type of the delay time parameter.

See also

IOperation

Definition at line 607 of file Operations.h.

Constructor & Destructor Documentation

IGateOperation()

template<typename Time = Types::time_type>

Circuits::IGateOperation< Time >::IGateOperation ( Time delay = 0 )

inline

Construct a new IGateOperation object.

Construct a new IGateOperation object with the specified execution time.

Parameters

delay

The execution time of the operation.

Definition at line 615 of file Operations.h.

Member Function Documentation

GetNumQubits()

template<typename Time = Types::time_type>

virtual unsigned int Circuits::IGateOperation< Time >::GetNumQubits ( ) const

pure virtual

Get the number of qubits.

Get the number of qubits the gate operates on.

Returns

The number of qubits the gate operates on.

Implemented in Circuits::SingleQubitGate< Time >, Circuits::SingleQubitGate< Types::time_type >, Circuits::ThreeQubitsGate< Time >, Circuits::ThreeQubitsGate< Types::time_type >, Circuits::TwoQubitsGate< Time >, and Circuits::TwoQubitsGate< Types::time_type >.

GetQubit()

template<typename Time = Types::time_type>

virtual Types::qubit_t Circuits::IGateOperation< Time >::GetQubit ( unsigned int index = 0 ) const

pure virtual

Get the qubit involved.

Get the qubit involved.

Parameters

index

The index of the qubit to get (0, 1, or 2, the maximum depending on the number of qubits of the gate).

Returns

The qubit involved.

Implemented in Circuits::SingleQubitGate< Time >, Circuits::SingleQubitGate< Types::time_type >, Circuits::ThreeQubitsGate< Time >, Circuits::ThreeQubitsGate< Types::time_type >, Circuits::TwoQubitsGate< Time >, and Circuits::TwoQubitsGate< Types::time_type >.

GetType()

template<typename Time = Types::time_type>

OperationType Circuits::IGateOperation< Time >::GetType ( ) const

inlineoverridevirtual

Get the type of the operation.

Get the type of the operation, in this case, gate.

Returns

The type of the operation, gate in this case.

See also

OperationType

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 624 of file Operations.h.

SetQubit()

template<typename Time = Types::time_type>

virtual void Circuits::IGateOperation< Time >::SetQubit ( Types::qubit_t qubit, unsigned long index = 0 )

pure virtual

Set the qubits involved.

Set the qubits involved.

Parameters

qubit	The qubit to set.
index	The index of the qubit to set (0 for 1 qubit gates, 0 and 1 for two qubit gates, 0, 1 and 3 for three qubit gates).

Implemented in Circuits::SingleQubitGate< Time >, Circuits::SingleQubitGate< Types::time_type >, Circuits::ThreeQubitsGate< Time >, Circuits::ThreeQubitsGate< Types::time_type >, Circuits::TwoQubitsGate< Time >, and Circuits::TwoQubitsGate< Types::time_type >.

---

The documentation for this class was generated from the following file:

• Operations.h
