Circuits::ConditionalGate< Time > Class Template Reference

A conditional quantum gate. More...

#include <Conditional.h>

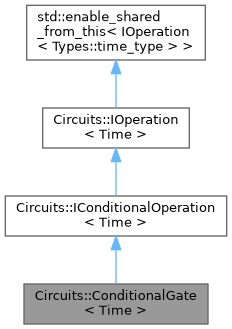

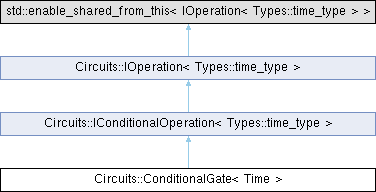

Inheritance diagram for Circuits::ConditionalGate< Time >:

Public Member Functions
	ConditionalGate (const std::shared_ptr< IGateOperation< Time > > &operation, const std::shared_ptr< ICondition > &condition, Time delay=0)
	Construct a new ConditionalGate object.
OperationType	GetType () const override
	Get the type of the operation.
std::shared_ptr< IOperation< Time > >	Clone () const override
	Get a shared pointer to a clone of this object.
Public Member Functions inherited from Circuits::IConditionalOperation< Types::time_type >
	IConditionalOperation (const std::shared_ptr< IOperation< Types::time_type > > &operation, const std::shared_ptr< ICondition > &condition, Types::time_type delay=0)
	Construct a new IConditionalOperation object.
void	Execute (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const override
	Execute the operation.
void	SetOperation (const std::shared_ptr< IOperation< Types::time_type > > &op)
	Set the operation for the conditional operation.
std::shared_ptr< IOperation< Types::time_type > >	GetOperation () const
	Get the operation for the conditional operation.
void	SetCondition (const std::shared_ptr< ICondition > &cond)
	Set the condition for the conditional operation.
std::shared_ptr< ICondition >	GetCondition () const
	Get the condition for the conditional operation.
std::vector< size_t >	AffectedBits () const override
	Get bits that are involved in the condition.
Types::qubits_vector	AffectedQubits () const override
	Get the qubits affected by the operation.
std::shared_ptr< IOperation< Types::time_type > >	Remap (const std::unordered_map< Types::qubit_t, Types::qubit_t > &qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > &bitsMap={}) const override
	Get a shared pointer to a remapped operation.
bool	IsClifford () const override
	Checks if the operation is a Clifford one.
Public Member Functions inherited from Circuits::IOperation< Types::time_type >
	IOperation (Types::time_type delay=0)
	Construct a new IOperation object.
virtual	~IOperation ()=default
	Destroy the IOperation object.
virtual bool	CanAffectQuantumState () const
	Find if the operation can affect the quantum state.
virtual bool	NeedsEntanglementForDistribution () const
	Find if the operation needs entanglement for distribution.
virtual bool	IsConditional () const
	Find if the operation is a conditional operation.
std::shared_ptr< IOperation< Types::time_type > >	getptr ()
	Get a shared pointer to this object.
Types::time_type	GetDelay () const
	Get the delay of the operation.
void	SetDelay (Types::time_type d)
	Set the delay of the operation.

Detailed Description

template<typename Time = Types::time_type>
class Circuits::ConditionalGate< Time >

A conditional quantum gate.

A quantum gate that is executed only if a condition is met.

Template Parameters

Time	The type of the time parameter that is used for operations timing.

See also

IConditionalOperation

Definition at line 390 of file Conditional.h.

Constructor & Destructor Documentation

ConditionalGate()

template<typename Time = Types::time_type>

Circuits::ConditionalGate< Time >::ConditionalGate ( const std::shared_ptr< IGateOperation< Time > > & operation, const std::shared_ptr< ICondition > & condition, Time delay = 0 )

inline

Construct a new ConditionalGate object.

Construct a new ConditionalGate object with the given gate, condition and delay.

Parameters

operation	The gate to execute if the condition is met.
condition	The condition to check.
delay	The delay of the gate.

See also

IConditionalOperation

IGateOperation

ICondition

Definition at line 404 of file Conditional.h.

Member Function Documentation

Clone()

template<typename Time = Types::time_type>

std::shared_ptr< IOperation< Time > > Circuits::ConditionalGate< Time >::Clone ( ) const

inlineoverridevirtual

Get a shared pointer to a clone of this object.

Returns a shared pointer to a copy of this object.

Returns

A shared pointer to this object.

Implements Circuits::IOperation< Types::time_type >.

Definition at line 425 of file Conditional.h.

GetType()

template<typename Time = Types::time_type>

OperationType Circuits::ConditionalGate< Time >::GetType ( ) const

inlineoverridevirtual

Get the type of the operation.

Returns the type of the operation.

Returns

The type of the operation.

See also

OperationType

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 415 of file Conditional.h.

---

The documentation for this class was generated from the following file:

• Conditional.h
