An operation conditioned on classical values. More...

#include <Conditional.h>

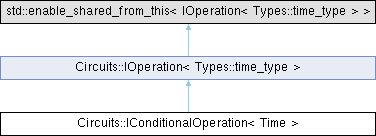

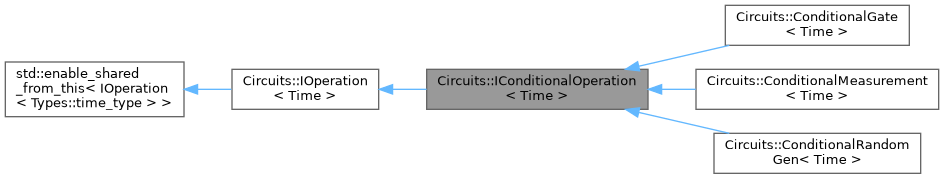

Inheritance diagram for Circuits::IConditionalOperation< Time >:

Public Member Functions
	IConditionalOperation (const std::shared_ptr< IOperation< Time > > &operation, const std::shared_ptr< ICondition > &condition, Time delay=0)
	Construct a new IConditionalOperation object.
void	Execute (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const override
	Execute the operation.
void	SetOperation (const std::shared_ptr< IOperation< Time > > &op)
	Set the operation for the conditional operation.
std::shared_ptr< IOperation< Time > >	GetOperation () const
	Get the operation for the conditional operation.
void	SetCondition (const std::shared_ptr< ICondition > &cond)
	Set the condition for the conditional operation.
std::shared_ptr< ICondition >	GetCondition () const
	Get the condition for the conditional operation.
std::vector< size_t >	AffectedBits () const override
	Get bits that are involved in the condition.
Types::qubits_vector	AffectedQubits () const override
	Get the qubits affected by the operation.
std::shared_ptr< IOperation< Time > >	Remap (const std::unordered_map< Types::qubit_t, Types::qubit_t > &qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > &bitsMap={}) const override
	Get a shared pointer to a remapped operation.
bool	IsClifford () const override
	Checks if the operation is a Clifford one.
Public Member Functions inherited from Circuits::IOperation< Types::time_type >
	IOperation (Types::time_type delay=0)
	Construct a new IOperation object.
virtual	~IOperation ()=default
	Destroy the IOperation object.
virtual OperationType	GetType () const
	Get the type of the operation.
virtual std::shared_ptr< IOperation< Types::time_type > >	Clone () const=0
	Get a shared pointer to a clone of this object.
virtual bool	CanAffectQuantumState () const
	Find if the operation can affect the quantum state.
virtual bool	NeedsEntanglementForDistribution () const
	Find if the operation needs entanglement for distribution.
virtual bool	IsConditional () const
	Find if the operation is a conditional operation.
std::shared_ptr< IOperation< Types::time_type > >	getptr ()
	Get a shared pointer to this object.
Types::time_type	GetDelay () const
	Get the delay of the operation.
void	SetDelay (Types::time_type d)
	Set the delay of the operation.

Detailed Description

template<typename Time = Types::time_type>
class Circuits::IConditionalOperation< Time >

An operation conditioned on classical values.

An operation that is executed only if a condition is met.

Template Parameters

Time	The type of the time parameter that is used for operations timing.

See also: IConditionalOperation; IOperation

Definition at line 218 of file Conditional.h.

Constructor & Destructor Documentation

◆ IConditionalOperation()

template<typename Time = Types::time_type>

Circuits::IConditionalOperation< Time >::IConditionalOperation	(	const std::shared_ptr< IOperation< Time > > &	operation,
		const std::shared_ptr< ICondition > &	condition,
		Time	delay = 0 )

inline

Construct a new IConditionalOperation object.

Construct a new IConditionalOperation object with the given operation, condition and delay.

Parameters

operation	The operation to execute if the condition is met.
condition	The condition to check.
delay	The delay of the operation.

See also: IOperation; ICondition

Definition at line 231 of file Conditional.h.

Member Function Documentation

◆ AffectedBits()

template<typename Time = Types::time_type>

std::vector< size_t > Circuits::IConditionalOperation< Time >::AffectedBits ( ) const

inlineoverridevirtual

Get bits that are involved in the condition.

Get the classical bits that are involved in the condition.

Returns: The bits involved.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 315 of file Conditional.h.

◆ AffectedQubits()

template<typename Time = Types::time_type>

Types::qubits_vector Circuits::IConditionalOperation< Time >::AffectedQubits ( ) const

inlineoverridevirtual

Get the qubits affected by the operation.

Returns: The qubits affected by the operation.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 328 of file Conditional.h.

◆ Execute()

template<typename Time = Types::time_type>

void Circuits::IConditionalOperation< Time >::Execute	(	const std::shared_ptr< Simulators::ISimulator > &	sim,
		OperationState &	state ) const

inlineoverridevirtual

Execute the operation.

Execute the operation if the condition is met with the specified classical state, in the specified simulator.

Parameters

sim	The simulator to execute the operation on.
state	The classical state to execute the operation on (check condition against it and if it has a classical result, put the results there).

See also: ISimulator; OperationState

Implements Circuits::IOperation< Types::time_type >.

Definition at line 248 of file Conditional.h.

◆ GetCondition()

template<typename Time = Types::time_type>

std::shared_ptr< ICondition > Circuits::IConditionalOperation< Time >::GetCondition ( ) const

inline

Get the condition for the conditional operation.

Get the condition to check.

Returns: The condition to check.

See also: ICondition

Definition at line 307 of file Conditional.h.

◆ GetOperation()

template<typename Time = Types::time_type>

std::shared_ptr< IOperation< Time > > Circuits::IConditionalOperation< Time >::GetOperation ( ) const

inline

Get the operation for the conditional operation.

Get the operation to execute if the condition is met.

Returns: The operation to execute if the condition is met.

See also: IOperation

Definition at line 287 of file Conditional.h.

◆ IsClifford()

template<typename Time = Types::time_type>

bool Circuits::IConditionalOperation< Time >::IsClifford ( ) const

inlineoverridevirtual

Checks if the operation is a Clifford one.

Checks if the operation is a Clifford one, allowing to be simulated in a stabilizers simulator.

Returns: True if it can be applied in a stabilizers simulator, false otherwise.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 367 of file Conditional.h.

◆ Remap()

template<typename Time = Types::time_type>

std::shared_ptr< IOperation< Time > > Circuits::IConditionalOperation< Time >::Remap	(	const std::unordered_map< Types::qubit_t, Types::qubit_t > &	qubitsMap,
		const std::unordered_map< Types::qubit_t, Types::qubit_t > &	bitsMap = {} ) const

inlineoverridevirtual

Get a shared pointer to a remapped operation.

Returns a shared pointer to a copy of the operation with qubits and classical bits changed according to the provided maps.

Parameters

qubitsMap	The map of qubits to remap.
bitsMap	The map of classical bits to remap.

Returns: A shared pointer to the remapped object.

Implements Circuits::IOperation< Types::time_type >.

Definition at line 346 of file Conditional.h.

◆ SetCondition()

template<typename Time = Types::time_type>

void Circuits::IConditionalOperation< Time >::SetCondition ( const std::shared_ptr< ICondition > & cond )

inline

Set the condition for the conditional operation.

Assigns the condition to check.

Parameters

cond	The assigned condition.

See also: ICondition

Definition at line 296 of file Conditional.h.

◆ SetOperation()

template<typename Time = Types::time_type>

void Circuits::IConditionalOperation< Time >::SetOperation ( const std::shared_ptr< IOperation< Time > > & op )

inline

Set the operation for the conditional operation.

Assigns the operation to execute if the condition is met.

Parameters

op	The assigned operation.

Definition at line 263 of file Conditional.h.

The documentation for this class was generated from the following file:

Conditional.h
