Circuit class for holding the sequence of operations that can be compared with another circuit. More...

#include <Circuit.h>

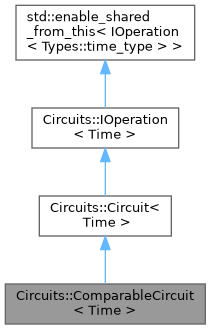

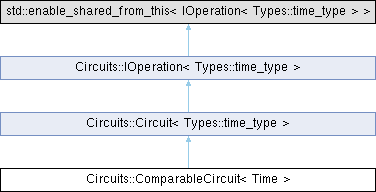

Inheritance diagram for Circuits::ComparableCircuit< Time >:

Public Types
using	BaseClass = Circuit<Time>
	The base class type.
using	Operation = IOperation<Time>
	The operation type.
using	OperationPtr = std::shared_ptr<Operation>
	The shared pointer to the operation type.
using	OperationsVector
	The vector of operations.
Public Types inherited from Circuits::Circuit< Types::time_type >
using	ExecuteResults
	The results of the execution of the circuit.
using	BitMapping
	The (qu)bit mapping for remapping.
using	Operation
	The operation type.
using	OperationPtr
	The shared pointer to the operation type.
using	OperationsVector
	The vector of operations.
using	value_type
using	allocator_type
using	pointer
using	const_pointer
using	reference
using	const_reference
using	size_type
using	difference_type
using	iterator
using	const_iterator
using	reverse_iterator
using	const_reverse_iterator

Public Member Functions
	ComparableCircuit (const OperationsVector &ops={})
	Construct a new ComparableCircuit object.
	ComparableCircuit (const BaseClass &circ)
	Construct a new ComparableCircuit object.
ComparableCircuit &	operator= (const BaseClass &circ)
	Assignment operator.
bool	operator== (const BaseClass &rhs) const
	Comparison operator.
bool	operator!= (const BaseClass &rhs) const
	Comparison operator.
void	SetApproximateParamsCheck (bool check)
	Sets whether to check approximate equality of gate parameters.
bool	GetApproximateParamsCheck () const
	Gets whether to check approximate equality of gate parameters.
void	SetParamsEpsilon (double eps)
	Sets the epsilon used for checking approximate equality of gate parameters.
double	GetParamsEpsilon () const
	Gets the epsilon used for checking approximate equality of gate parameters.
Public Member Functions inherited from Circuits::Circuit< Types::time_type >
	Circuit (const OperationsVector &ops={})
	Construct a new Circuit object.
void	Execute (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const override
	Execute the circuit on the given simulator.
OperationType	GetType () const override
	Get the type of the circuit.
void	AddOperation (const OperationPtr &op)
	Adds an operation to the circuit.
void	ReplaceOperation (size_t index, const OperationPtr &op)
	Replaces an operation in the circuit.
void	SetOperations (const OperationsVector &ops)
	Set the operations in the circuit.
void	AddOperations (const OperationsVector &ops)
	Adds operations to the circuit.
void	AddCircuit (const std::shared_ptr< Circuit< Types::time_type > > &circuit)
	Adds operations from another circuit to the circuit.
const OperationsVector &	GetOperations () const
	Get the operations in the circuit.
void	Clear ()
	Clears the operations from the circuit.
OperationPtr	Clone () const override
	Get a shared pointer to a clone of this object.
OperationPtr	CloneFlyweight () const
	Get a shared pointer to a clone of this object, but without cloning the operations.
OperationPtr	Remap (const BitMapping &qubitsMap, const BitMapping &bitsMap={}) const override
	Get a shared pointer to a circuit remapped.
std::shared_ptr< Circuit< Types::time_type > >	RemapToContinuous (BitMapping &newQubitsMap, BitMapping &reverseBitsMap, size_t &nrQubits, size_t &nrCbits) const
	Get a shared pointer to a circuit remapped to a continuous interval starting from zero.
void	ConvertForDistribution ()
	Converts the circuit for distributed computing.
void	ConvertForCutting ()
	Converts the circuit for distributed computing.
void	EnsureProperOrderForMeasurements ()
size_t	GetMaxQubitIndex () const
	Returns the max qubit id for all operations.
size_t	GetMinQubitIndex () const
	Returns the min qubit id for all operations.
size_t	GetMaxCbitIndex () const
	Returns the max classical bit id for all operations.
size_t	GetMinCbitIndex () const
	Returns the min classical bit id for all operations.
std::set< size_t >	GetQubits () const
	Returns the qubits affected by the operations.
std::set< size_t >	GetBits () const
	Returns the classical bits affected by the operations.
Types::qubits_vector	AffectedQubits () const override
	Returns the affected qubits.
std::vector< size_t >	AffectedBits () const override
	Returns the affected bits.
bool	NeedsEntanglementForDistribution () const override
	Find if the circuit needs entanglement for distribution.
bool	CanAffectQuantumState () const override
	Find if the circuit can affect the quantum state.
std::unordered_map< size_t, OperationPtr >	GetLastOperationsOnQubits () const
	Returns the last operations on circuit's qubits.
std::unordered_map< size_t, OperationPtr >	GetFirstOperationsOnQubits () const
	Returns the first operations on circuit's qubits.
void	AddResetsIfNeeded (Types::time_type delay=0)
	Add resets at the end of the circuit.
void	AddResetsAtBeginningIfNeeded (Types::time_type delay=0)
	Add resets at the beginning of the circuit.
void	Optimize (bool optimizeRotationGates=true)
	Circuit optimization.
void	MoveMeasurementsAndResets ()
	Move the measurements and resets closer to the beginning of the circuit.
std::pair< std::vector< size_t >, std::vector< Types::time_type > >	GetDepth () const
	Get circuit depth.
std::pair< size_t, Types::time_type >	GetMaxDepth () const
	Get max circuit depth.
size_t	GetNumberOfOperations () const
	Get the number of operations in the circuit.
OperationPtr	GetOperation (size_t pos) const
	Get an operation at a given position.
std::shared_ptr< Circuit< Types::time_type > >	GetCircuitCut (Types::qubit_t startQubit, Types::qubit_t endQubit) const
	Get the circuit cut.
bool	HasOpsAfterMeasurements () const
	Checks if the circuit has measurements that are followed by operations that affect the measured qubits.
std::vector< bool >	ExecuteNonMeasurements (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const
	Execute the non-measurements operations from the circuit on the given simulator.
void	ExecuteMeasurements (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state, const std::vector< bool > &executedOps) const
	Execute the measurement operations from the circuit on the given simulator.
std::shared_ptr< MeasurementOperation< Types::time_type > >	GetLastMeasurements (const std::vector< bool > &executedOps, bool sort=true) const
bool	HasConditionalOperations () const
	Checks if the circuit has clasically conditional operations.
bool	ActsOnlyOnAdjacentQubits () const
	Checks if the circuit has only operations that act on adjacent qubits.
bool	IsForest () const
	Checks if the circuit is a forest circuit.
bool	IsClifford () const override
	Checks if the circuit is a Clifford circuit.
double	CliffordPercentage () const
	Get the percentage of Clifford operations in the circuit.
std::unordered_set< Types::qubit_t >	GetCliffordQubits () const
	Get the qubits that are acted on by Clifford operations.
std::vector< std::shared_ptr< Circuit< Types::time_type > > >	SplitCircuit () const
	Splits a circuit that has disjoint subcircuits in it into separate circuits.
iterator	begin () noexcept
	Get the begin iterator for the operations.
iterator	end () noexcept
	Get the end iterator for the operations.
const_iterator	cbegin () const noexcept
	Get the const begin iterator for the operations.
const_iterator	cend () const noexcept
	Get the const end iterator for the operations.
reverse_iterator	rbegin () noexcept
	Get the reverse begin iterator for the operations.
reverse_iterator	rend () noexcept
	Get the reverse end iterator for the operations.
const_reverse_iterator	crbegin () const noexcept
	Get the const reverse begin iterator for the operations.
const_reverse_iterator	crend () const noexcept
	Get the const reverse end iterator for the operations.
auto	size () const
	Get the number of operations in the circuit.
auto	empty () const
	Check if the circuit is empty.
auto &	operator[] (size_t pos)
	Get the operation at a given position.
void	resize (size_t size)
	Resizes the circuit.
Public Member Functions inherited from Circuits::IOperation< Types::time_type >
	IOperation (Types::time_type delay=0)
	Construct a new IOperation object.
virtual	~IOperation ()=default
	Destroy the IOperation object.
virtual std::shared_ptr< IOperation< Types::time_type > >	Remap (const std::unordered_map< Types::qubit_t, Types::qubit_t > &qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > &bitsMap={}) const=0
	Get a shared pointer to a remapped operation.
virtual bool	IsConditional () const
	Find if the operation is a conditional operation.
std::shared_ptr< IOperation< Types::time_type > >	getptr ()
	Get a shared pointer to this object.
Types::time_type	GetDelay () const
	Get the delay of the operation.
void	SetDelay (Types::time_type d)
	Set the delay of the operation.

Additional Inherited Members
Static Public Member Functions inherited from Circuits::Circuit< Types::time_type >
static ExecuteResults	RemapResultsBack (const ExecuteResults &results, const BitMapping &bitsMap={}, bool ignoreNotMapped=false, size_t sz=0)
	Map back the results for a remapped circuit.
static void	AccumulateResults (ExecuteResults &results, const ExecuteResults &newResults)
	Accumulate the results of a circuit execution to already existing results.
static void	AccumulateResultsWithRemapBack (ExecuteResults &results, const ExecuteResults &newResults, const BitMapping &bitsMap={}, bool ignoreNotMapped=true, size_t sz=0)
	Accumulate the results of a circuit execution to already existing results with remapping.

Detailed Description

template<typename Time = Types::time_type>
class Circuits::ComparableCircuit< Time >

Circuit class for holding the sequence of operations that can be compared with another circuit.

Contains a sequence of operations that can be executed, supplying a function that allows executing them in a simulator. Allows adding operations and converting them to prepare the circuit for distributed computing.

Template Parameters

Time	The time type used for operation timing.

See also: Circuit; IOperation; ISimulator

Definition at line 2422 of file Circuit.h.

Member Typedef Documentation

◆ BaseClass

template<typename Time = Types::time_type>

using Circuits::ComparableCircuit< Time >::BaseClass = Circuit<Time>

The base class type.

Definition at line 2424 of file Circuit.h.

◆ Operation

template<typename Time = Types::time_type>

using Circuits::ComparableCircuit< Time >::Operation = IOperation<Time>

The operation type.

Definition at line 2425 of file Circuit.h.

◆ OperationPtr

template<typename Time = Types::time_type>

using Circuits::ComparableCircuit< Time >::OperationPtr = std::shared_ptr<Operation>

The shared pointer to the operation type.

Definition at line 2426 of file Circuit.h.

◆ OperationsVector

template<typename Time = Types::time_type>

using Circuits::ComparableCircuit< Time >::OperationsVector

Initial value:

std::vector<OperationPtr>

The vector of operations.

Definition at line 2428 of file Circuit.h.

Constructor & Destructor Documentation

◆ ComparableCircuit() [1/2]

template<typename Time = Types::time_type>

Circuits::ComparableCircuit< Time >::ComparableCircuit ( const OperationsVector & ops = {} )

inline

Construct a new ComparableCircuit object.

Constructs a new ComparableCircuit object with the given operations.

Parameters

ops	The operations to add to the circuit.

See also: IOperation

Definition at line 2438 of file Circuit.h.

◆ ComparableCircuit() [2/2]

template<typename Time = Types::time_type>

Circuits::ComparableCircuit< Time >::ComparableCircuit ( const BaseClass & circ )

inline

Construct a new ComparableCircuit object.

Constructs a new ComparableCircuit object with the given Circuit.

Parameters

circuit The circuit from where to add the operations to the comparable circuit.

See also: Circuit

Definition at line 2448 of file Circuit.h.

Member Function Documentation

◆ GetApproximateParamsCheck()

template<typename Time = Types::time_type>

bool Circuits::ComparableCircuit< Time >::GetApproximateParamsCheck ( ) const

inline

Gets whether to check approximate equality of gate parameters.

Returns: Whether to check approximate equality of gate parameters.

Definition at line 2611 of file Circuit.h.

◆ GetParamsEpsilon()

template<typename Time = Types::time_type>

double Circuits::ComparableCircuit< Time >::GetParamsEpsilon ( ) const

inline

Gets the epsilon used for checking approximate equality of gate parameters.

Returns: The epsilon used for checking approximate equality of gate parameters.

Definition at line 2631 of file Circuit.h.

◆ operator!=()

template<typename Time = Types::time_type>

bool Circuits::ComparableCircuit< Time >::operator!= ( const BaseClass & rhs ) const

inline

Comparison operator.

Compares two circuits for inequality.

Parameters

rhs	The circuit to compare to.

Definition at line 2595 of file Circuit.h.

◆ operator=()

template<typename Time = Types::time_type>

ComparableCircuit & Circuits::ComparableCircuit< Time >::operator= ( const BaseClass & circ )

inline

Assignment operator.

Assigns the operations from the given circuit to this circuit.

Parameters

circ	The circuit from where to add the operations to this circuit.

Returns: A reference to this circuit.

Definition at line 2457 of file Circuit.h.

◆ operator==()

template<typename Time = Types::time_type>

bool Circuits::ComparableCircuit< Time >::operator== ( const BaseClass & rhs ) const

inline

Comparison operator.

Compares two circuits for equality.

Parameters

rhs	The circuit to compare to.

Definition at line 2469 of file Circuit.h.

◆ SetApproximateParamsCheck()

template<typename Time = Types::time_type>

void Circuits::ComparableCircuit< Time >::SetApproximateParamsCheck ( bool check )

inline

Sets whether to check approximate equality of gate parameters.

Parameters

check Whether to check approximate equality of gate parameters.

Definition at line 2603 of file Circuit.h.

◆ SetParamsEpsilon()

template<typename Time = Types::time_type>

void Circuits::ComparableCircuit< Time >::SetParamsEpsilon ( double eps )

inline

Sets the epsilon used for checking approximate equality of gate parameters.

Parameters

eps	The epsilon used for checking approximate equality of gate parameters.

Definition at line 2621 of file Circuit.h.

The documentation for this class was generated from the following file:

Circuit.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ Operation

◆ OperationPtr

◆ OperationsVector

Constructor & Destructor Documentation

◆ ComparableCircuit() [1/2]

◆ ComparableCircuit() [2/2]

Member Function Documentation

◆ GetApproximateParamsCheck()

◆ GetParamsEpsilon()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ SetApproximateParamsCheck()

◆ SetParamsEpsilon()
