Circuit class for holding the sequence of operations. More...

#include <Circuit.h>

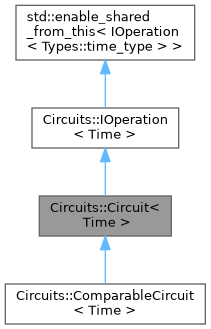

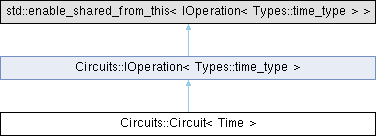

Inheritance diagram for Circuits::Circuit< Time >:

Public Types
using	ExecuteResults
	The results of the execution of the circuit.
using	BitMapping
	The (qu)bit mapping for remapping.
using	Operation = IOperation<Time>
	The operation type.
using	OperationPtr = std::shared_ptr<Operation>
	The shared pointer to the operation type.
using	OperationsVector
	The vector of operations.
using	value_type = typename OperationsVector::value_type
using	allocator_type = typename OperationsVector::allocator_type
using	pointer = typename OperationsVector::pointer
using	const_pointer = typename OperationsVector::const_pointer
using	reference = typename OperationsVector::reference
using	const_reference = typename OperationsVector::const_reference
using	size_type = typename OperationsVector::size_type
using	difference_type = typename OperationsVector::difference_type
using	iterator = typename OperationsVector::iterator
using	const_iterator = typename OperationsVector::const_iterator
using	reverse_iterator = typename OperationsVector::reverse_iterator
using	const_reverse_iterator

Public Member Functions
	Circuit (const OperationsVector &ops={})
	Construct a new Circuit object.
void	Execute (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const override
	Execute the circuit on the given simulator.
OperationType	GetType () const override
	Get the type of the circuit.
void	AddOperation (const OperationPtr &op)
	Adds an operation to the circuit.
void	ReplaceOperation (size_t index, const OperationPtr &op)
	Replaces an operation in the circuit.
void	SetOperations (const OperationsVector &ops)
	Set the operations in the circuit.
void	AddOperations (const OperationsVector &ops)
	Adds operations to the circuit.
void	AddCircuit (const std::shared_ptr< Circuit< Time > > &circuit)
	Adds operations from another circuit to the circuit.
const OperationsVector &	GetOperations () const
	Get the operations in the circuit.
void	Clear ()
	Clears the operations from the circuit.
OperationPtr	Clone () const override
	Get a shared pointer to a clone of this object.
OperationPtr	CloneFlyweight () const
	Get a shared pointer to a clone of this object, but without cloning the operations.
OperationPtr	Remap (const BitMapping &qubitsMap, const BitMapping &bitsMap={}) const override
	Get a shared pointer to a circuit remapped.
std::shared_ptr< Circuit< Time > >	RemapToContinuous (BitMapping &newQubitsMap, BitMapping &reverseBitsMap, size_t &nrQubits, size_t &nrCbits) const
	Get a shared pointer to a circuit remapped to a continuous interval starting from zero.
void	ConvertForDistribution ()
	Converts the circuit for distributed computing.
void	ConvertForCutting ()
	Converts the circuit for distributed computing.
void	EnsureProperOrderForMeasurements ()
size_t	GetMaxQubitIndex () const
	Returns the max qubit id for all operations.
size_t	GetMinQubitIndex () const
	Returns the min qubit id for all operations.
size_t	GetMaxCbitIndex () const
	Returns the max classical bit id for all operations.
size_t	GetMinCbitIndex () const
	Returns the min classical bit id for all operations.
std::set< size_t >	GetQubits () const
	Returns the qubits affected by the operations.
std::set< size_t >	GetBits () const
	Returns the classical bits affected by the operations.
Types::qubits_vector	AffectedQubits () const override
	Returns the affected qubits.
std::vector< size_t >	AffectedBits () const override
	Returns the affected bits.
bool	NeedsEntanglementForDistribution () const override
	Find if the circuit needs entanglement for distribution.
bool	CanAffectQuantumState () const override
	Find if the circuit can affect the quantum state.
std::unordered_map< size_t, OperationPtr >	GetLastOperationsOnQubits () const
	Returns the last operations on circuit's qubits.
std::unordered_map< size_t, OperationPtr >	GetFirstOperationsOnQubits () const
	Returns the first operations on circuit's qubits.
void	AddResetsIfNeeded (Time delay=0)
	Add resets at the end of the circuit.
void	AddResetsAtBeginningIfNeeded (Time delay=0)
	Add resets at the beginning of the circuit.
void	Optimize (bool optimizeRotationGates=true)
	Circuit optimization.
void	MoveMeasurementsAndResets ()
	Move the measurements and resets closer to the beginning of the circuit.
std::pair< std::vector< size_t >, std::vector< Time > >	GetDepth () const
	Get circuit depth.
std::pair< size_t, Time >	GetMaxDepth () const
	Get max circuit depth.
size_t	GetNumberOfOperations () const
	Get the number of operations in the circuit.
OperationPtr	GetOperation (size_t pos) const
	Get an operation at a given position.
std::shared_ptr< Circuit< Time > >	GetCircuitCut (Types::qubit_t startQubit, Types::qubit_t endQubit) const
	Get the circuit cut.
bool	HasOpsAfterMeasurements () const
	Checks if the circuit has measurements that are followed by operations that affect the measured qubits.
std::vector< bool >	ExecuteNonMeasurements (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const
	Execute the non-measurements operations from the circuit on the given simulator.
void	ExecuteMeasurements (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state, const std::vector< bool > &executedOps) const
	Execute the measurement operations from the circuit on the given simulator.
std::shared_ptr< MeasurementOperation< Time > >	GetLastMeasurements (const std::vector< bool > &executedOps, bool sort=true) const
bool	HasConditionalOperations () const
	Checks if the circuit has clasically conditional operations.
bool	ActsOnlyOnAdjacentQubits () const
	Checks if the circuit has only operations that act on adjacent qubits.
bool	IsForest () const
	Checks if the circuit is a forest circuit.
bool	IsClifford () const override
	Checks if the circuit is a Clifford circuit.
double	CliffordPercentage () const
	Get the percentage of Clifford operations in the circuit.
std::unordered_set< Types::qubit_t >	GetCliffordQubits () const
	Get the qubits that are acted on by Clifford operations.
std::vector< std::shared_ptr< Circuit< Time > > >	SplitCircuit () const
	Splits a circuit that has disjoint subcircuits in it into separate circuits.
iterator	begin () noexcept
	Get the begin iterator for the operations.
iterator	end () noexcept
	Get the end iterator for the operations.
const_iterator	cbegin () const noexcept
	Get the const begin iterator for the operations.
const_iterator	cend () const noexcept
	Get the const end iterator for the operations.
reverse_iterator	rbegin () noexcept
	Get the reverse begin iterator for the operations.
reverse_iterator	rend () noexcept
	Get the reverse end iterator for the operations.
const_reverse_iterator	crbegin () const noexcept
	Get the const reverse begin iterator for the operations.
const_reverse_iterator	crend () const noexcept
	Get the const reverse end iterator for the operations.
auto	size () const
	Get the number of operations in the circuit.
auto	empty () const
	Check if the circuit is empty.
auto &	operator[] (size_t pos)
	Get the operation at a given position.
const auto &	operator[] (size_t pos) const
	Get the operation at a given position.
void	resize (size_t size)
	Resizes the circuit.
Public Member Functions inherited from Circuits::IOperation< Types::time_type >
	IOperation (Types::time_type delay=0)
	Construct a new IOperation object.
virtual	~IOperation ()=default
	Destroy the IOperation object.
virtual std::shared_ptr< IOperation< Types::time_type > >	Remap (const std::unordered_map< Types::qubit_t, Types::qubit_t > &qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > &bitsMap={}) const=0
	Get a shared pointer to a remapped operation.
virtual bool	IsConditional () const
	Find if the operation is a conditional operation.
std::shared_ptr< IOperation< Types::time_type > >	getptr ()
	Get a shared pointer to this object.
Types::time_type	GetDelay () const
	Get the delay of the operation.
void	SetDelay (Types::time_type d)
	Set the delay of the operation.

Static Public Member Functions
static ExecuteResults	RemapResultsBack (const ExecuteResults &results, const BitMapping &bitsMap={}, bool ignoreNotMapped=false, size_t sz=0)
	Map back the results for a remapped circuit.
static void	AccumulateResults (ExecuteResults &results, const ExecuteResults &newResults)
	Accumulate the results of a circuit execution to already existing results.
static void	AccumulateResultsWithRemapBack (ExecuteResults &results, const ExecuteResults &newResults, const BitMapping &bitsMap={}, bool ignoreNotMapped=true, size_t sz=0)
	Accumulate the results of a circuit execution to already existing results with remapping.

Detailed Description

template<typename Time = Types::time_type>
class Circuits::Circuit< Time >

Circuit class for holding the sequence of operations.

Contains a sequence of operations that can be executed, supplying a function that allows executing them in a simulator. Allows adding operations and converting them to prepare the circuit for distributed computing.

Template Parameters

Time	The time type used for operation timing.

See also: IOperation; ISimulator

Definition at line 45 of file Circuit.h.

Member Typedef Documentation

◆ allocator_type

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::allocator_type = typename OperationsVector::allocator_type

Definition at line 63 of file Circuit.h.

◆ BitMapping

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::BitMapping

Initial value:


      std::unordered_map<Types::qubit_t,
                         Types::qubit_t>

The (qu)bit mapping for remapping.

Definition at line 51 of file Circuit.h.

◆ const_iterator

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::const_iterator = typename OperationsVector::const_iterator

Definition at line 72 of file Circuit.h.

◆ const_pointer

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::const_pointer = typename OperationsVector::const_pointer

Definition at line 65 of file Circuit.h.

◆ const_reference

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::const_reference = typename OperationsVector::const_reference

Definition at line 67 of file Circuit.h.

◆ const_reverse_iterator

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::const_reverse_iterator

Initial value:

typename OperationsVector::const_reverse_iterator

Definition at line 74 of file Circuit.h.

◆ difference_type

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::difference_type = typename OperationsVector::difference_type

Definition at line 69 of file Circuit.h.

◆ ExecuteResults

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::ExecuteResults

Initial value:


      std::unordered_map<std::vector<bool>,
                         size_t>

The results of the execution of the circuit.

Definition at line 47 of file Circuit.h.

◆ iterator

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::iterator = typename OperationsVector::iterator

Definition at line 71 of file Circuit.h.

◆ Operation

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::Operation = IOperation<Time>

The operation type.

Definition at line 56 of file Circuit.h.

◆ OperationPtr

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::OperationPtr = std::shared_ptr<Operation>

The shared pointer to the operation type.

Definition at line 57 of file Circuit.h.

◆ OperationsVector

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::OperationsVector

Initial value:

std::vector<OperationPtr>

The vector of operations.

Definition at line 59 of file Circuit.h.

◆ pointer

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::pointer = typename OperationsVector::pointer

Definition at line 64 of file Circuit.h.

◆ reference

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::reference = typename OperationsVector::reference

Definition at line 66 of file Circuit.h.

◆ reverse_iterator

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::reverse_iterator = typename OperationsVector::reverse_iterator

Definition at line 73 of file Circuit.h.

◆ size_type

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::size_type = typename OperationsVector::size_type

Definition at line 68 of file Circuit.h.

◆ value_type

template<typename Time = Types::time_type>

using Circuits::Circuit< Time >::value_type = typename OperationsVector::value_type

Definition at line 62 of file Circuit.h.

Constructor & Destructor Documentation

◆ Circuit()

template<typename Time = Types::time_type>

Circuits::Circuit< Time >::Circuit ( const OperationsVector & ops = {} )

inline

Construct a new Circuit object.

Constructs a new Circuit object with the given operations.

Parameters

ops	The operations to add to the circuit.

See also: IOperation

Definition at line 84 of file Circuit.h.

Member Function Documentation

◆ AccumulateResults()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::AccumulateResults	(	ExecuteResults &	results,
		const ExecuteResults &	newResults )

inlinestatic

Accumulate the results of a circuit execution to already existing results.

Accumulates the results of a circuit execution to already existing results.

Parameters

results	The existing results to accumulate to.
newResults	The new results to add to the existing results.

Definition at line 331 of file Circuit.h.

◆ AccumulateResultsWithRemapBack()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::AccumulateResultsWithRemapBack	(	ExecuteResults &	results,
		const ExecuteResults &	newResults,
		const BitMapping &	bitsMap = {},
		bool	ignoreNotMapped = true,
		size_t	sz = 0 )

inlinestatic

Accumulate the results of a circuit execution to already existing results with remapping.

Accumulates the results of a circuit execution to already existing results with remapping back.

Parameters

results	The existing results to accumulate to.
newResults	The new results to add to the existing results.
bitsMap	The map of classical bits to remap.
ignoreNotMapped	If true, the results that are not in the map will be ignored.
sz	The size of the results vector.

Definition at line 351 of file Circuit.h.

◆ ActsOnlyOnAdjacentQubits()

template<typename Time = Types::time_type>

bool Circuits::Circuit< Time >::ActsOnlyOnAdjacentQubits ( ) const

inline

Checks if the circuit has only operations that act on adjacent qubits.

Checks if the circuit has only operations that act on adjacent qubits. Can be useful in picking up a tensor network contractor, for example. Also such a circuit is easier to simulate in a MPS simulator, since swap gates are not needed to be added to bring up the qubits next to each other before applying a two qubits gate.

Returns: True if the circuit has operations that are not gates, false otherwise.

Definition at line 1896 of file Circuit.h.

◆ AddCircuit()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::AddCircuit ( const std::shared_ptr< Circuit< Time > > & circuit )

inline

Adds operations from another circuit to the circuit.

Parameters

circuit The circuit to add operations from.

Definition at line 164 of file Circuit.h.

◆ AddOperation()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::AddOperation ( const OperationPtr & op )

inline

Adds an operation to the circuit.

Parameters

op	The operation to add.

See also: IOperation

Definition at line 122 of file Circuit.h.

◆ AddOperations()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::AddOperations ( const OperationsVector & ops )

inline

Adds operations to the circuit.

Parameters

ops	The operations to add.

See also: IOperation

Definition at line 154 of file Circuit.h.

◆ AddResetsAtBeginningIfNeeded()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::AddResetsAtBeginningIfNeeded ( Time delay = 0 )

inline

Add resets at the beginning of the circuit.

Adds resets at the beginning of the circuit, on the qubits that don't have a reset operation already.

Parameters

delay The delay for the reset operation

Definition at line 756 of file Circuit.h.

◆ AddResetsIfNeeded()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::AddResetsIfNeeded ( Time delay = 0 )

inline

Add resets at the end of the circuit.

Adds resets at the end of the circuit, on the qubits that don't have a reset operation already.

Parameters

delay The delay for the reset operation

Definition at line 737 of file Circuit.h.

◆ AffectedBits()

template<typename Time = Types::time_type>

std::vector< size_t > Circuits::Circuit< Time >::AffectedBits ( ) const

inlineoverridevirtual

Returns the affected bits.

Returns the affected classical bits.

Returns: The affected bits.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 645 of file Circuit.h.

◆ AffectedQubits()

template<typename Time = Types::time_type>

Types::qubits_vector Circuits::Circuit< Time >::AffectedQubits ( ) const

inlineoverridevirtual

Returns the affected qubits.

Returns the affected qubits by the operation.

Returns: A vector with the affected qubits.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 627 of file Circuit.h.

◆ begin()

template<typename Time = Types::time_type>

iterator Circuits::Circuit< Time >::begin ( )

inlinenoexcept

Get the begin iterator for the operations.

Returns the begin iterator for the operations.

Returns: The begin iterator for the operations.

Definition at line 2149 of file Circuit.h.

◆ CanAffectQuantumState()

template<typename Time = Types::time_type>

bool Circuits::Circuit< Time >::CanAffectQuantumState ( ) const

inlineoverridevirtual

Find if the circuit can affect the quantum state.

Returns true if the circuit can affect the quantum state, false otherwise.

Returns: True if the circuit can affect the quantum state, false otherwise.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 681 of file Circuit.h.

◆ cbegin()

template<typename Time = Types::time_type>

const_iterator Circuits::Circuit< Time >::cbegin ( ) const

inlinenoexcept

Get the const begin iterator for the operations.

Returns the const begin iterator for the operations.

Returns: The const begin iterator for the operations.

Definition at line 2165 of file Circuit.h.

◆ cend()

template<typename Time = Types::time_type>

const_iterator Circuits::Circuit< Time >::cend ( ) const

inlinenoexcept

Get the const end iterator for the operations.

Returns the const end iterator for the operations.

Returns: The const end iterator for the operations.

Definition at line 2173 of file Circuit.h.

◆ Clear()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::Clear ( )

inline

Clears the operations from the circuit.

Removes all operations from the circuit.

Definition at line 182 of file Circuit.h.

◆ CliffordPercentage()

template<typename Time = Types::time_type>

double Circuits::Circuit< Time >::CliffordPercentage ( ) const

inline

Get the percentage of Clifford operations in the circuit.

Returns the percentage of Clifford operations in the circuit. Considers gates as Clifford if they are supported by the Clifford simulator.

Returns: The percentage of Clifford operations in the circuit.

Definition at line 2004 of file Circuit.h.

◆ Clone()

template<typename Time = Types::time_type>

OperationPtr Circuits::Circuit< Time >::Clone ( ) const

inlineoverridevirtual

Get a shared pointer to a clone of this object.

Returns a shared pointer to a copy of this object.

Returns: A shared pointer to this object.

Implements Circuits::IOperation< Types::time_type >.

Definition at line 190 of file Circuit.h.

◆ CloneFlyweight()

template<typename Time = Types::time_type>

OperationPtr Circuits::Circuit< Time >::CloneFlyweight ( ) const

inline

Get a shared pointer to a clone of this object, but without cloning the operations.

Returns a shared pointer to a copy of this object, flyweight stype.

Returns: A shared pointer to this object.

Definition at line 206 of file Circuit.h.

◆ ConvertForCutting()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::ConvertForCutting ( )

inline

Converts the circuit for distributed computing.

Converts the circuit for distributed computing using circuit cutting. Converts the three qubit gates to prepare the circuit for distributed computing.

Definition at line 408 of file Circuit.h.

◆ ConvertForDistribution()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::ConvertForDistribution ( )

inline

Converts the circuit for distributed computing.

Converts the circuit for distributed computing using quantum entanglement between hosts. Converts the swap gates and three qubit gates to prepare the circuit for distributed computing.

Definition at line 393 of file Circuit.h.

◆ crbegin()

template<typename Time = Types::time_type>

const_reverse_iterator Circuits::Circuit< Time >::crbegin ( ) const

inlinenoexcept

Get the const reverse begin iterator for the operations.

Returns the const reverse begin iterator for the operations.

Returns: The const reverse begin iterator for the operations.

Definition at line 2197 of file Circuit.h.

◆ crend()

template<typename Time = Types::time_type>

const_reverse_iterator Circuits::Circuit< Time >::crend ( ) const

inlinenoexcept

Get the const reverse end iterator for the operations.

Returns the const reverse end iterator for the operations.

Returns: The const reverse end iterator for the operations.

Definition at line 2207 of file Circuit.h.

◆ empty()

template<typename Time = Types::time_type>

auto Circuits::Circuit< Time >::empty ( ) const

inline

Check if the circuit is empty.

Returns true if the circuit is empty, false otherwise.

Returns: True if the circuit is empty, false otherwise.

Definition at line 2223 of file Circuit.h.

◆ end()

template<typename Time = Types::time_type>

iterator Circuits::Circuit< Time >::end ( )

inlinenoexcept

Get the end iterator for the operations.

Returns the end iterator for the operations.

Returns: The end iterator for the operations.

Definition at line 2157 of file Circuit.h.

◆ EnsureProperOrderForMeasurements()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::EnsureProperOrderForMeasurements ( )

inline

Definition at line 427 of file Circuit.h.

◆ Execute()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::Execute	(	const std::shared_ptr< Simulators::ISimulator > &	sim,
		OperationState &	state ) const

inlineoverridevirtual

Execute the circuit on the given simulator.

Executes the circuit on the given simulator.

Parameters

sim	The simulator to execute the circuit on.
state	The classical state containing the classical bits.

See also: ISimulator; OperationState

Implements Circuits::IOperation< Types::time_type >.

Definition at line 95 of file Circuit.h.

◆ ExecuteMeasurements()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::ExecuteMeasurements	(	const std::shared_ptr< Simulators::ISimulator > &	sim,
		OperationState &	state,
		const std::vector< bool > &	executedOps ) const

inline

Execute the measurement operations from the circuit on the given simulator.

Execute the measurements operations from the circuit on the given simulator.

Parameters

sim	The simulator to execute the circuit on.
state	The classical state containing the classical bits.

See also: ISimulator; OperationState

Definition at line 1816 of file Circuit.h.

◆ ExecuteNonMeasurements()

template<typename Time = Types::time_type>

std::vector< bool > Circuits::Circuit< Time >::ExecuteNonMeasurements	(	const std::shared_ptr< Simulators::ISimulator > &	sim,
		OperationState &	state ) const

inline

Execute the non-measurements operations from the circuit on the given simulator.

Parameters

sim	The simulator to execute the circuit on.
state	The classical state containing the classical bits.

Returns: A bool vector with the executed operations marked.

See also: ISimulator; OperationState

Definition at line 1716 of file Circuit.h.

◆ GetBits()

template<typename Time = Types::time_type>

std::set< size_t > Circuits::Circuit< Time >::GetBits ( ) const

inline

Returns the classical bits affected by the operations.

Returns: The bits affected by the operations

Definition at line 611 of file Circuit.h.

◆ GetCircuitCut()

template<typename Time = Types::time_type>

std::shared_ptr< Circuit< Time > > Circuits::Circuit< Time >::GetCircuitCut	(	Types::qubit_t	startQubit,
		Types::qubit_t	endQubit ) const

inline

Get the circuit cut.

Cuts out a circuit from the current circuit, starting from the startQubit and ending at the endQubit. Throws an exception if there is an operation that affects both qubits inside and outside of the specified interval. The returned circuit contains only operations that act on the qubits in the specified interval.

Parameters

startQubit	The start qubit of the interval.
endQubit	The end qubit of the interval.

Returns: The circuit cut.

Definition at line 1599 of file Circuit.h.

◆ GetCliffordQubits()

template<typename Time = Types::time_type>

std::unordered_set< Types::qubit_t > Circuits::Circuit< Time >::GetCliffordQubits ( ) const

inline

Get the qubits that are acted on by Clifford operations.

Returns the qubits that are acted on only by Clifford operations. Considers gates as Clifford if they are supported by the Clifford simulator.

Returns: The qubits that are acted on only by Clifford operations.

Definition at line 2022 of file Circuit.h.

◆ GetDepth()

template<typename Time = Types::time_type>

std::pair< std::vector< size_t >, std::vector< Time > > Circuits::Circuit< Time >::GetDepth ( ) const

inline

Get circuit depth.

Returns the depth of the circuit as a pair of the depth and an estimate of time cost for each qubit. Should be considered only as an estimate.

Returns: The depth of the circuit as a pair of the depth and an estimate of time cost for each qubit.

Definition at line 1442 of file Circuit.h.

◆ GetFirstOperationsOnQubits()

template<typename Time = Types::time_type>

std::unordered_map< size_t, OperationPtr > Circuits::Circuit< Time >::GetFirstOperationsOnQubits ( ) const

inline

Returns the first operations on circuit's qubits.

Returns: The first operations on circuit's qubits

Definition at line 715 of file Circuit.h.

◆ GetLastMeasurements()

template<typename Time = Types::time_type>

std::shared_ptr< MeasurementOperation< Time > > Circuits::Circuit< Time >::GetLastMeasurements	(	const std::vector< bool > &	executedOps,
		bool	sort = true ) const

inline

Definition at line 1838 of file Circuit.h.

◆ GetLastOperationsOnQubits()

template<typename Time = Types::time_type>

std::unordered_map< size_t, OperationPtr > Circuits::Circuit< Time >::GetLastOperationsOnQubits ( ) const

inline

Returns the last operations on circuit's qubits.

Returns: The last operations on circuit's qubits

Definition at line 696 of file Circuit.h.

◆ GetMaxCbitIndex()

template<typename Time = Types::time_type>

size_t Circuits::Circuit< Time >::GetMaxCbitIndex ( ) const

inline

Returns the max classical bit id for all operations.

Returns: The max classical bit id for all operations

Definition at line 554 of file Circuit.h.

◆ GetMaxDepth()

template<typename Time = Types::time_type>

std::pair< size_t, Time > Circuits::Circuit< Time >::GetMaxDepth ( ) const

inline

Get max circuit depth.

Returns the max depth of the circuit as a pair of the max depth and an estimate of max time cost. Should be considered only as an estimate.

Returns: The max depth of the circuit as a pair of the max depth and an estimate of time cost.

Definition at line 1548 of file Circuit.h.

◆ GetMaxQubitIndex()

template<typename Time = Types::time_type>

size_t Circuits::Circuit< Time >::GetMaxQubitIndex ( ) const

inline

Returns the max qubit id for all operations.

Returns: The max qubit id for all operations

Definition at line 516 of file Circuit.h.

◆ GetMinCbitIndex()

template<typename Time = Types::time_type>

size_t Circuits::Circuit< Time >::GetMinCbitIndex ( ) const

inline

Returns the min classical bit id for all operations.

Returns: The min classical bit id for all operations

Definition at line 573 of file Circuit.h.

◆ GetMinQubitIndex()

template<typename Time = Types::time_type>

size_t Circuits::Circuit< Time >::GetMinQubitIndex ( ) const

inline

Returns the min qubit id for all operations.

Returns: The min qubit id for all operations

Definition at line 535 of file Circuit.h.

◆ GetNumberOfOperations()

template<typename Time = Types::time_type>

size_t Circuits::Circuit< Time >::GetNumberOfOperations ( ) const

inline

Get the number of operations in the circuit.

Returns the number of operations in the circuit.

Returns: The number of operations in the circuit.

Definition at line 1569 of file Circuit.h.

◆ GetOperation()

template<typename Time = Types::time_type>

OperationPtr Circuits::Circuit< Time >::GetOperation ( size_t pos ) const

inline

Get an operation at a given position.

Returns the operation at the given position.

Parameters

pos	The position of the operation to get.

Returns: The operation at the given position.

Definition at line 1579 of file Circuit.h.

◆ GetOperations()

template<typename Time = Types::time_type>

const OperationsVector & Circuits::Circuit< Time >::GetOperations ( ) const

inline

Get the operations in the circuit.

Returns the operations in the circuit.

Returns: The operations in the circuit.

See also: IOperation

Definition at line 175 of file Circuit.h.

◆ GetQubits()

template<typename Time = Types::time_type>

std::set< size_t > Circuits::Circuit< Time >::GetQubits ( ) const

inline

Returns the qubits affected by the operations.

Returns the qubits affected by the operations. They might not cover all qubits, there might be gaps. In such cases a remapping might be needed, for example in a scheduler.

Returns: The qubits affected by the operations

Definition at line 594 of file Circuit.h.

◆ GetType()

template<typename Time = Types::time_type>

OperationType Circuits::Circuit< Time >::GetType ( ) const

inlineoverridevirtual

Get the type of the circuit.

Returns the type of the circuit.

Returns: The type of the circuit.

See also: OperationType

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 113 of file Circuit.h.

◆ HasConditionalOperations()

template<typename Time = Types::time_type>

bool Circuits::Circuit< Time >::HasConditionalOperations ( ) const

inline

Checks if the circuit has clasically conditional operations.

Returns: True if the circuit has clasically conditional operations, false otherwise.

Definition at line 1873 of file Circuit.h.

◆ HasOpsAfterMeasurements()

template<typename Time = Types::time_type>

bool Circuits::Circuit< Time >::HasOpsAfterMeasurements ( ) const

inline

Checks if the circuit has measurements that are followed by operations that affect the measured qubits.

Returns: True if the circuit has measurements that are followed by operations that affect the measured qubits, false otherwise.

Definition at line 1641 of file Circuit.h.

◆ IsClifford()

template<typename Time = Types::time_type>

bool Circuits::Circuit< Time >::IsClifford ( ) const

inlineoverridevirtual

Checks if the circuit is a Clifford circuit.

Checks if the circuit is a Clifford circuit. Considers gates as Clifford if they are supported by the Clifford simulator.

Returns: True if the circuit is a Clifford circuit, false otherwise.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 1987 of file Circuit.h.

◆ IsForest()

template<typename Time = Types::time_type>

bool Circuits::Circuit< Time >::IsForest ( ) const

inline

Checks if the circuit is a forest circuit.

Returns: True if the circuit is a forest circuit, false otherwise.

Definition at line 1931 of file Circuit.h.

◆ MoveMeasurementsAndResets()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::MoveMeasurementsAndResets ( )

inline

Move the measurements and resets closer to the beginning of the circuit.

Moves the measurements and resets closer to the beginning of the circuit.

Definition at line 1301 of file Circuit.h.

◆ NeedsEntanglementForDistribution()

template<typename Time = Types::time_type>

bool Circuits::Circuit< Time >::NeedsEntanglementForDistribution ( ) const

inlineoverridevirtual

Find if the circuit needs entanglement for distribution.

Returns true if the circuit needs entanglement for distribution, false otherwise.

Returns: True if the circuit needs entanglement for distribution, false otherwise.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 666 of file Circuit.h.

◆ operator[]() [1/2]

template<typename Time = Types::time_type>

auto & Circuits::Circuit< Time >::operator[] ( size_t pos )

inline

Get the operation at a given position.

Returns the operation at the given position.

Parameters

pos	The position of the operation to get.

Returns: The operation at the given position.

Definition at line 2232 of file Circuit.h.

◆ operator[]() [2/2]

template<typename Time = Types::time_type>

const auto & Circuits::Circuit< Time >::operator[] ( size_t pos ) const

inline

Get the operation at a given position.

Returns the operation at the given position.

Parameters

pos	The position of the operation to get.

Returns: The operation at the given position.

Definition at line 2241 of file Circuit.h.

◆ Optimize()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::Optimize ( bool optimizeRotationGates = true )

inline

Circuit optimization.

Optimizes the circuit. See qisikit aer for 'transpilling' when the circuit is flushed for some ideas.

Definition at line 775 of file Circuit.h.

◆ rbegin()

template<typename Time = Types::time_type>

reverse_iterator Circuits::Circuit< Time >::rbegin ( )

inlinenoexcept

Get the reverse begin iterator for the operations.

Returns the reverse begin iterator for the operations.

Returns: The reverse begin iterator for the operations.

Definition at line 2181 of file Circuit.h.

◆ Remap()

template<typename Time = Types::time_type>

OperationPtr Circuits::Circuit< Time >::Remap	(	const BitMapping &	qubitsMap,
		const BitMapping &	bitsMap = {} ) const

inlineoverride

Get a shared pointer to a circuit remapped.

Returns a shared pointer to a copy of the circuit with qubits and classical bits changed according to the provided maps.

Parameters

qubitsMap	The map of qubits to remap.
bitsMap	The map of classical bits to remap.

Returns: A shared pointer to the remapped circuit.

Definition at line 225 of file Circuit.h.

◆ RemapResultsBack()

template<typename Time = Types::time_type>

ExecuteResults Circuits::Circuit< Time >::RemapResultsBack	(	const ExecuteResults &	results,
		const BitMapping &	bitsMap = {},
		bool	ignoreNotMapped = false,
		size_t	sz = 0 )

inlinestatic

Map back the results for a remapped circuit.

Maps back the results for a remapped circuit, using the provided map. The results are the results of the execution of the circuit without remapping.

Parameters

results	The results to map back.
bitsMap	The map of classical bits to remap.
ignoreNotMapped	If true, the results that are not in the map will be ignored.
sz	The size of the results vector.

Returns: The mapped back results.

See also: Circuit::Remap

Definition at line 298 of file Circuit.h.

◆ RemapToContinuous()

template<typename Time = Types::time_type>

std::shared_ptr< Circuit< Time > > Circuits::Circuit< Time >::RemapToContinuous	(	BitMapping &	newQubitsMap,
		BitMapping &	reverseBitsMap,
		size_t &	nrQubits,
		size_t &	nrCbits ) const

inline

Get a shared pointer to a circuit remapped to a continuous interval starting from zero.

Returns a shared pointer to a copy of the circuit with qubits and classical bits changed according to the provided maps.

Parameters

bitsMap The map of classical bits, to allow remapping the results back to the original circuit results.

Returns: A shared pointer to the remapped circuit.

Definition at line 246 of file Circuit.h.

◆ rend()

template<typename Time = Types::time_type>

reverse_iterator Circuits::Circuit< Time >::rend ( )

inlinenoexcept

Get the reverse end iterator for the operations.

Returns the reverse end iterator for the operations.

Returns: The reverse end iterator for the operations.

Definition at line 2189 of file Circuit.h.

◆ ReplaceOperation()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::ReplaceOperation	(	size_t	index,
		const OperationPtr &	op )

inline

Replaces an operation in the circuit.

Parameters

index	The index of the operation to replace.
op	The operation to replace with.

See also: IOperation

Definition at line 132 of file Circuit.h.

◆ resize()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::resize ( size_t size )

inline

Resizes the circuit.

Resizes the circuit, but it cannot make it larger, only smaller, by removing the last operations.

Parameters

size	The new size of the circuit.

Definition at line 2250 of file Circuit.h.

◆ SetOperations()

template<typename Time = Types::time_type>

void Circuits::Circuit< Time >::SetOperations ( const OperationsVector & ops )

inline

Set the operations in the circuit.

Sets the operations in the circuit.

Parameters

ops	The operations to set.

See also: IOperation

Definition at line 145 of file Circuit.h.

◆ size()

template<typename Time = Types::time_type>

auto Circuits::Circuit< Time >::size ( ) const

inline

Get the number of operations in the circuit.

Returns the number of operations in the circuit.

Returns: The number of operations in the circuit.

Definition at line 2215 of file Circuit.h.

◆ SplitCircuit()

template<typename Time = Types::time_type>

std::vector< std::shared_ptr< Circuit< Time > > > Circuits::Circuit< Time >::SplitCircuit ( ) const

inline

Splits a circuit that has disjoint subcircuits in it into separate circuits.

Returns: A vector of shared pointers to the separate circuits.

Definition at line 2052 of file Circuit.h.

The documentation for this class was generated from the following file:

Circuit.h

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Typedef Documentation

◆ allocator_type

◆ BitMapping

◆ const_iterator

◆ const_pointer

◆ const_reference

◆ const_reverse_iterator

◆ difference_type

◆ ExecuteResults

◆ iterator

◆ Operation

◆ OperationPtr

◆ OperationsVector

◆ pointer

◆ reference

◆ reverse_iterator

◆ size_type

◆ value_type

Constructor & Destructor Documentation

◆ Circuit()

Member Function Documentation

◆ AccumulateResults()

◆ AccumulateResultsWithRemapBack()

◆ ActsOnlyOnAdjacentQubits()

◆ AddCircuit()

◆ AddOperation()

◆ AddOperations()

◆ AddResetsAtBeginningIfNeeded()

◆ AddResetsIfNeeded()

◆ AffectedBits()

◆ AffectedQubits()

◆ begin()

◆ CanAffectQuantumState()

◆ cbegin()

◆ cend()

◆ Clear()

◆ CliffordPercentage()

◆ Clone()

◆ CloneFlyweight()

◆ ConvertForCutting()

◆ ConvertForDistribution()

◆ crbegin()

◆ crend()

◆ empty()

◆ end()

◆ EnsureProperOrderForMeasurements()

◆ Execute()

◆ ExecuteMeasurements()

◆ ExecuteNonMeasurements()

◆ GetBits()

◆ GetCircuitCut()

◆ GetCliffordQubits()

◆ GetDepth()

◆ GetFirstOperationsOnQubits()

◆ GetLastMeasurements()

◆ GetLastOperationsOnQubits()

◆ GetMaxCbitIndex()

◆ GetMaxDepth()

◆ GetMaxQubitIndex()

◆ GetMinCbitIndex()

◆ GetMinQubitIndex()

◆ GetNumberOfOperations()

◆ GetOperation()

◆ GetOperations()

◆ GetQubits()

◆ GetType()

◆ HasConditionalOperations()

◆ HasOpsAfterMeasurements()

◆ IsClifford()

◆ IsForest()

◆ MoveMeasurementsAndResets()

◆ NeedsEntanglementForDistribution()

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ Optimize()

◆ rbegin()
