#include <RandomOp.h>

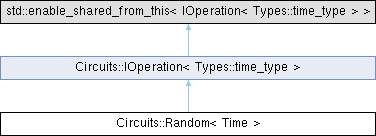

Inheritance diagram for Circuits::Random< Time >:

Public Member Functions
	Random (const std::vector< size_t > &ind={}, size_t seed=0, Time delay=0)
	Construct a new Random object.
void	Execute (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const override
	Execute the operation.
OperationType	GetType () const override
	Get the type of the operation.
const std::vector< size_t > &	GetBitsIndices () const
	Get the indices of the classical bits affected by this operation.
void	SetBitsIndices (const std::vector< size_t > &ind)
	Set the indices of the classical bits affected by this operation.
void	Seed (size_t sd)
	Seeds the random generator.
std::shared_ptr< IOperation< Time > >	Clone () const override
	Get a shared pointer to a clone of this object.
std::vector< size_t >	AffectedBits () const override
	Get the affected bits.
std::shared_ptr< IOperation< Time > >	Remap (const std::unordered_map< Types::qubit_t, Types::qubit_t > &qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > &bitsMap={}) const override
	Get a shared pointer to a remapped operation.
bool	IsClifford () const override
	Checks if the operation is a Clifford one.
Public Member Functions inherited from Circuits::IOperation< Types::time_type >
	IOperation (Types::time_type delay=0)
	Construct a new IOperation object.
virtual	~IOperation ()=default
	Destroy the IOperation object.
virtual bool	CanAffectQuantumState () const
	Find if the operation can affect the quantum state.
virtual bool	NeedsEntanglementForDistribution () const
	Find if the operation needs entanglement for distribution.
virtual bool	IsConditional () const
	Find if the operation is a conditional operation.
virtual Types::qubits_vector	AffectedQubits () const
	Returns the affected qubits.
std::shared_ptr< IOperation< Types::time_type > >	getptr ()
	Get a shared pointer to this object.
Types::time_type	GetDelay () const
	Get the delay of the operation.
void	SetDelay (Types::time_type d)
	Set the delay of the operation.

Protected Member Functions
void	SetBit (size_t index, Types::qubit_t bit)
	Set the classical bit to index.

Detailed Description

template<typename Time = Types::time_type>
class Circuits::Random< Time >

Random operation.

Implements an operation that can generate random classical bits that are stored in the classical state/register.

Template Parameters

Time	The data type used for operation time.

See also: IOperation

Definition at line 33 of file RandomOp.h.

Constructor & Destructor Documentation

◆ Random()

template<typename Time = Types::time_type>

Circuits::Random< Time >::Random	(	const std::vector< size_t > &	ind = {},
		size_t	seed = 0,
		Time	delay = 0 )

inline

Construct a new Random object.

Constructs a new Random object.

Parameters

ind	The indices of the classical bits to be set by the generator.
seed	The seed used for the random number generator.
delay	The excution time.

Definition at line 43 of file RandomOp.h.

Member Function Documentation

◆ AffectedBits()

template<typename Time = Types::time_type>

std::vector< size_t > Circuits::Random< Time >::AffectedBits ( ) const

inlineoverridevirtual

Get the affected bits.

Returns the indices of the classical bits affected by this operation.

Returns: The indices of the bits affected by this operation.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 114 of file RandomOp.h.

◆ Clone()

template<typename Time = Types::time_type>

std::shared_ptr< IOperation< Time > > Circuits::Random< Time >::Clone ( ) const

inlineoverridevirtual

Get a shared pointer to a clone of this object.

Returns a shared pointer to a copy of this object.

Returns: A shared pointer to this object.

Implements Circuits::IOperation< Types::time_type >.

Definition at line 103 of file RandomOp.h.

◆ Execute()

template<typename Time = Types::time_type>

void Circuits::Random< Time >::Execute	(	const std::shared_ptr< Simulators::ISimulator > &	sim,
		OperationState &	state ) const

inlineoverridevirtual

Execute the operation.

Executes the operation.

Parameters

sim	The simulator to be used for the execution.
state	The state of the simulator.

Implements Circuits::IOperation< Types::time_type >.

Definition at line 55 of file RandomOp.h.

◆ GetBitsIndices()

template<typename Time = Types::time_type>

const std::vector< size_t > & Circuits::Random< Time >::GetBitsIndices ( ) const

inline

Get the indices of the classical bits affected by this operation.

Returns the indices of the classical bits affected by this operation.

Returns: The indices of the classical bits affected by this operation.

Definition at line 75 of file RandomOp.h.

◆ GetType()

template<typename Time = Types::time_type>

OperationType Circuits::Random< Time >::GetType ( ) const

inlineoverridevirtual

Get the type of the operation.

Returns the type of the operation, in this case, random.

Returns: The type of the operation.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 67 of file RandomOp.h.

◆ IsClifford()

template<typename Time = Types::time_type>

bool Circuits::Random< Time >::IsClifford ( ) const

inlineoverridevirtual

Checks if the operation is a Clifford one.

Checks if the operation is a Clifford one, allowing to be simulated in a stabilizers simulator.

Returns: True if it can be applied in a stabilizers simulator, false otherwise.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 150 of file RandomOp.h.

◆ Remap()

template<typename Time = Types::time_type>

std::shared_ptr< IOperation< Time > > Circuits::Random< Time >::Remap	(	const std::unordered_map< Types::qubit_t, Types::qubit_t > &	qubitsMap,
		const std::unordered_map< Types::qubit_t, Types::qubit_t > &	bitsMap = {} ) const

inlineoverridevirtual

Get a shared pointer to a remapped operation.

Returns a shared pointer to a copy of the operation with qubits and classical bits changed according to the provided maps.

Parameters

qubitsMap	The map of qubits to remap.
bitsMap	The map of classical bits to remap.

Returns: A shared pointer to the remapped object.

Implements Circuits::IOperation< Types::time_type >.

Definition at line 127 of file RandomOp.h.

◆ Seed()

template<typename Time = Types::time_type>

void Circuits::Random< Time >::Seed ( size_t sd )

inline

Seeds the random generator.

Seeds the random generator using the specified seed.

Parameters

sd	The seed to be used.

Definition at line 91 of file RandomOp.h.

◆ SetBit()

template<typename Time = Types::time_type>

void Circuits::Random< Time >::SetBit	(	size_t	index,
		Types::qubit_t	bit )

inlineprotected

Set the classical bit to index.

This method sets the classical bit index at the specified index.

Parameters

index	The index of the classical bit index.
bit	The classical bit index to set.

Definition at line 160 of file RandomOp.h.

◆ SetBitsIndices()

template<typename Time = Types::time_type>

void Circuits::Random< Time >::SetBitsIndices ( const std::vector< size_t > & ind )

inline

Set the indices of the classical bits affected by this operation.

Sets the indices of the classical bits affected by this operation.

Parameters

ind	The indices of the classical bits affected by this operation.

Definition at line 83 of file RandomOp.h.

The documentation for this class was generated from the following file:

RandomOp.h
