Circuits::NoOperation< Time > Class Template Reference

The no operation. More...

#include <Operations.h>

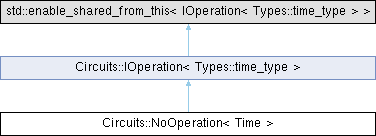

Inheritance diagram for Circuits::NoOperation< Time >:

Public Member Functions
	NoOperation (Time delay=0)
	Construct a new NoOperation object.
void	Execute (const std::shared_ptr< Simulators::ISimulator > &sim, OperationState &state) const override
	Execute the operation.
std::shared_ptr< IOperation< Time > >	Clone () const override
	Get a shared pointer to a clone of this object.
std::shared_ptr< IOperation< Time > >	Remap (const std::unordered_map< Types::qubit_t, Types::qubit_t > &qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > &bitsMap) const override
	Get a shared pointer to a remapped operation.
bool	IsClifford () const override
	Checks if the operation is a Clifford one.
Public Member Functions inherited from Circuits::IOperation< Types::time_type >
	IOperation (Types::time_type delay=0)
	Construct a new IOperation object.
virtual	~IOperation ()=default
	Destroy the IOperation object.
virtual OperationType	GetType () const
	Get the type of the operation.
virtual bool	CanAffectQuantumState () const
	Find if the operation can affect the quantum state.
virtual bool	NeedsEntanglementForDistribution () const
	Find if the operation needs entanglement for distribution.
virtual bool	IsConditional () const
	Find if the operation is a conditional operation.
virtual Types::qubits_vector	AffectedQubits () const
	Returns the affected qubits.
virtual std::vector< size_t >	AffectedBits () const
	Returns the affected bits.
std::shared_ptr< IOperation< Types::time_type > >	getptr ()
	Get a shared pointer to this object.
Types::time_type	GetDelay () const
	Get the delay of the operation.
void	SetDelay (Types::time_type d)
	Set the delay of the operation.

Detailed Description

template<typename Time = Types::time_type>
class Circuits::NoOperation< Time >

The no operation.

This a an operation that does nothing.

Template Parameters

Time	The type of the delay time parameter.

See also

IOperation

Definition at line 534 of file Operations.h.

Constructor & Destructor Documentation

NoOperation()

template<typename Time = Types::time_type>

Circuits::NoOperation< Time >::NoOperation ( Time delay = 0 )

inline

Construct a new NoOperation object.

Construct a new NoOperation object with the specified execution time.

Parameters

delay

The execution time of the operation.

Definition at line 542 of file Operations.h.

Member Function Documentation

Clone()

template<typename Time = Types::time_type>

std::shared_ptr< IOperation< Time > > Circuits::NoOperation< Time >::Clone ( ) const

inlineoverridevirtual

Get a shared pointer to a clone of this object.

Returns a shared pointer to a copy of this object.

Returns

A shared pointer to this object.

Implements Circuits::IOperation< Types::time_type >.

Definition at line 565 of file Operations.h.

Execute()

template<typename Time = Types::time_type>

void Circuits::NoOperation< Time >::Execute ( const std::shared_ptr< Simulators::ISimulator > & sim, OperationState & state ) const

inlineoverridevirtual

Execute the operation.

Execute the operation on the specified simulator. The execution does nothing, except adding the delay for the execution if a discrete event simulator is used. To not be confused with the simulator passed here as a parameter, which is a quantum simulator.

Parameters

sim	The simulator to execute the operation on.
state	The state of the operation.

See also

ISimulator

OperationState

Implements Circuits::IOperation< Types::time_type >.

Definition at line 556 of file Operations.h.

IsClifford()

template<typename Time = Types::time_type>

bool Circuits::NoOperation< Time >::IsClifford ( ) const

inlineoverridevirtual

Checks if the operation is a Clifford one.

Checks if the operation is a Clifford one, allowing to be simulated in a stabilizers simulator.

Returns

True if it can be applied in a stabilizers simulator, false otherwise.

Reimplemented from Circuits::IOperation< Types::time_type >.

Definition at line 595 of file Operations.h.

Remap()

template<typename Time = Types::time_type>

std::shared_ptr< IOperation< Time > > Circuits::NoOperation< Time >::Remap ( const std::unordered_map< Types::qubit_t, Types::qubit_t > & qubitsMap, const std::unordered_map< Types::qubit_t, Types::qubit_t > & bitsMap ) const

inlineoverridevirtual

Get a shared pointer to a remapped operation.

Returns a shared pointer to a copy of the operation with qubits and classical bits changed according to the provided maps.

Parameters

qubitsMap	The map of qubits to remap.
bitsMap	The map of classical bits to remap.

Returns

A shared pointer to the remapped object.

Implements Circuits::IOperation< Types::time_type >.

Definition at line 580 of file Operations.h.

---

The documentation for this class was generated from the following file:

• Operations.h
